Cable Tracers & Wire Tracers
Many "no video" faults on CCTV sites are in the cabling, not the camera. A cable tracer (also called a wire tracker or toner) sends a signal down one cable so you can find its other end in a bundle or patch panel, and check it for faults before you replace a camera that was never the problem.
Standalone cable tracers

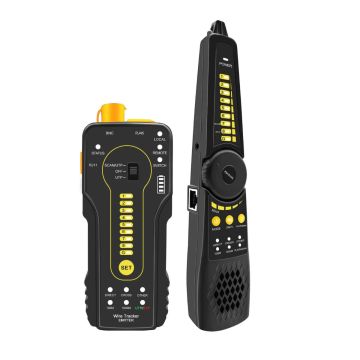

- ST-66 Multi-function Wire Tracker: traces RJ45, RJ11, UTP and STP cables, finds shorts and open circuits, and verifies network wiring.
- WT255 Digital Anti-jamming Cable Tracer: traces RJ45, telephone and BNC cables, with short-circuit and PoE PD tests. It also pairs with our camera testers.
Cable tracer or TDR?
A tracer tells you which cable is which. TDR (time-domain reflectometry) tells you how long a cable is and how far along it a break or short is, so you know where to dig or open the ceiling. Several camera testers include both:
| Model | Cable tracer | RJ45 TDR | Long-range TDR | Fiber tools |
|---|---|---|---|---|
| IPC-5100C Plus / IPC-5200C Plus | Yes | Up to 180m | No | No |
| IPC-X7-ADH / ADHS | Yes | Up to 180m | Up to 1200m | No |
| IPC-X7-MOVTADHS | Yes | Up to 180m | Up to 1200m | Optical power meter |
| IPC-X9-ADH / ADHS | Yes | Up to 180m | Up to 1200m | No |
| IPC-X9-MOVTADHS | Yes | Up to 180m | Up to 1200m | Optical power meter, VFL |
| IPC-9800CMADHS Pro+ | Yes | Up to 180m | Up to 1200m | SFP slot |
| IPC-9800MOVTADHS Pro+ | Yes | Up to 180m | Up to 1200m | Optical power meter, VFL, SFP slot |
Long-range TDR on these models covers BNC, network and telephone cable, and on the X9 and 9800 models also RVV and elevator cable. Not sure whether the fault is the cable or the camera? Our connection drops guide walks through the checks, or browse all CCTV testers.
