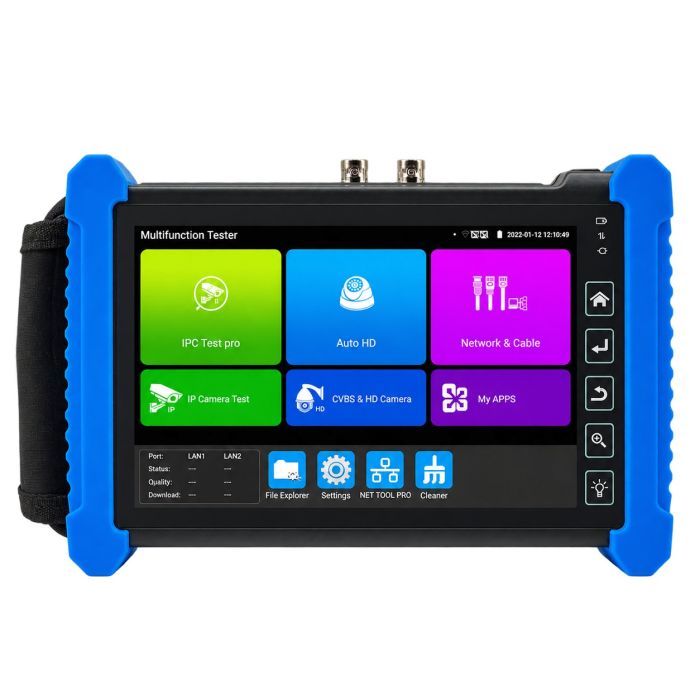

IPC-7600CADHS Plus 8K IP, Coax & SDI Camera Tester with Cable Tracer
IPC-7600CADHS Plus 8K IP, Coax & SDI Camera Tester with Cable Tracer
7-inch 8K IP, 8MP TVI / CVI / AHD and EX-SDI / HD-SDI / 3G-SDI camera tester with included cable tracer, 30W PoE, HDMI in/out and RJ45 TDR.
-
SKU
-
IPC-7600CADHS-PLUS
Save $40.00 (10%)
Regular Price
$398.00
$358.00
Secure checkout
·
1-year warranty
·
30-day returns
Buying on behalf of a company?
We can help with:
-
✓
Proforma Invoice (PI)
-
✓
Bank Transfer (T/T)
-
✓
Bulk Order Pricing
-
✓
Company Invoice
-
✓
Dedicated Sales Support
IPC-7600CADHS Plus
The IPC-7600CADHS Plus adds SDI camera testing to the IPC-7600CADH Plus, for sites that mix IP, coaxial HD and SDI cameras.
Key Capabilities
- IP camera testing up to 8K / 32MP with Rapid ONVIF, Hikvision and Dahua tools
- 8MP TVI / CVI / AHD, EX-SDI / HD-SDI / 3G-SDI and CVBS testing with UTC / OSD control
- RS485 PTZ control and hexadecimal data monitor
- Included cable tracer for BNC, network and telephone cables, with AC voltage detector
- HDMI input and output, VGA input
- 802.3af/at PoE up to 30W, UTP cable test and RJ45 TDR up to 180m
Technical Specifications
|
Brand |
STEEDVISION |
|
Model |
IPC-7600CADHS Plus |
|
Operating System |
Android 9.0 |
|
Display |
7-inch IPS Touchscreen |
|
Resolution |
1280 × 800 |
|
Battery |
Built-in 7.4V Lithium Polymer Battery, 7800mAh, 57.72Wh |
|
Working Time |
Up to 11 Hours |
|
Charging Time |
About 4 Hours |
|
Power Supply |
DC12V / 2A |
IP Camera Testing
|
IP Camera Test |
Up to 8K / 32MP |
|
ONVIF |
Supported |
|
Rapid Video |
Rapid ONVIF: Auto Login, Video View & Test Report |
|
Hikvision Tool |
One-Key Activation, Batch Activation & Parameter Modification |
|
Dahua Tool |
Batch Activation & IP Configuration |
Analog & Coaxial HD Testing
|
CVBS Input |
1 Channel BNC Input |
|
Video Standard |
NTSC / PAL Auto Adaptive |
|
PTZ Control |
RS485, 600–115200bps |
|
PTZ Protocols |
30+ Protocols |
|
TVI Support |
8MP 3840 × 2160P @ 12.5/15FPS |
|
CVI Support |
8MP 3840 × 2160P @ 12.5/15FPS |
|
AHD Support |
8MP 3840 × 2160P @ 15FPS |
|
SDI Support |
EX-SDI / HD-SDI / 3G-SDI, 8MP 3840 × 2160P @ 25/30FPS |
|
UTC Control |
Supported |
|
OSD Menu Control |
Supported |
Video Input & Output
|
VGA Input |
1280 × 1024P @ 60FPS |
|
HDMI Input |
4K @ 30FPS |
|
HDMI Output |
4K @ 60FPS |
Power Output
|
Standard PoE Output |
IEEE 802.3af/at, DC48V, Max 30W |
|
12V Camera Power Output |
DC12V / 3A |
|
24V Camera Power Output |
DC24V / 2A |
|
USB Power Output |
DC5V / 2A |
Cable Testing
|
Wire Tracer |
BNC / RJ45 / Telephone Cable Detection |
|
Voltage Detector |
AC12V–1000V |
|
Safety Rating |
CAT III 1000V / CAT IV 600V |
|
UTP Cable Analysis |
Connection Status Display |
|
RJ45 TDR Analysis |
Pair Status / Cable Length / Attenuation / Reflectivity / Impedance / Skew |
|
RJ45 TDR Range |
Up to 180m |
Fiber Optic Testing
|
Optical Power Meter (OPM) |
Not Supported |
|
Visual Fault Locator (VFL) |
Not Supported |
Network Functions
|
Wi-Fi Module |
Built-in 2.4GHz Wi-Fi |
|
Wi-Fi Speed |
150Mbps |
|
Ping Utility |
Supported |
|
Trace Route |
Supported |
|
DHCP Server |
Supported |
|
Port Flashing |
Supported |
|
Link Monitor |
Supported |
Audio & Data Functions
|
Audio Input |
1 Channel |
|
Audio Monitoring |
Supported |
|
Data Monitor |
Hexadecimal Data Capture & Send |
|
Screen Snapshot |
Supported |
|
Video Recording |
Supported |
|
Digital Zoom |
4× |
|
Playback |
Supported |
|
Screen Mirroring |
Android Phone / PC Display Supported |
Languages
|
Supported Languages |
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Serbian, Czech, Vietnamese and more |
Working Environment
|
Working Temperature |
-10°C to +50°C |
|
Working Humidity |
30%–90% |
Dimensions & Weight
|
Tester Dimensions |
203x140x47mm(8x5.5x1.85inch) |
|
Tester Weight |
935g(2.06lbs) |
