IPC-5100 / 5200 Plus Series
The IPC-5100 Plus and IPC-5200 Plus series are compact 5-inch camera testers that weigh about 0.4kg and run 5 to 8 hours. All four models test 8MP TVI, CVI and AHD cameras and supply PoE up to 25.5W. The 5200 models add SDI, and the C models add 8K IP testing and a cable tracer.
IPC-5100 / 5200 Plus models compared
| Model | IP cameras | SDI | Cable tools |
|---|---|---|---|

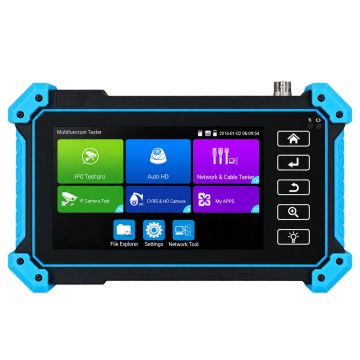

| IPC-5100 Plus | Up to 4K / 12MP | No | No |

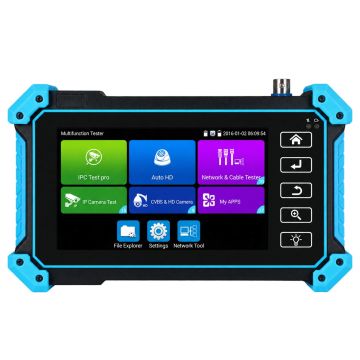

| IPC-5100C Plus | Up to 8K / 32MP | No | Digital cable tracer, RJ45 TDR |

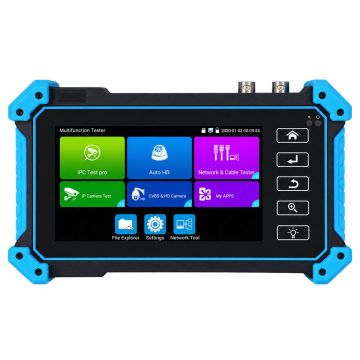

| IPC-5200 Plus | Up to 4K / 12MP | 8MP EX / HD / 3G-SDI | No |

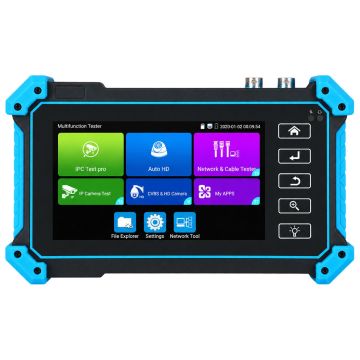

| IPC-5200C Plus | Up to 8K / 32MP | 8MP EX / HD / 3G-SDI | Cable tracer, RJ45 TDR |
Which 5-inch model to choose
- IP and analog HD cameras up to 12MP: the IPC-5100 Plus.
- Sites with SDI cameras: the IPC-5200 Plus.
- 8K IP cameras or cabling faults: the IPC-5100C Plus, or the IPC-5200C Plus if you also need SDI.
Want a smaller tester? See the 4-inch handheld series. Browse all CCTV testers.
