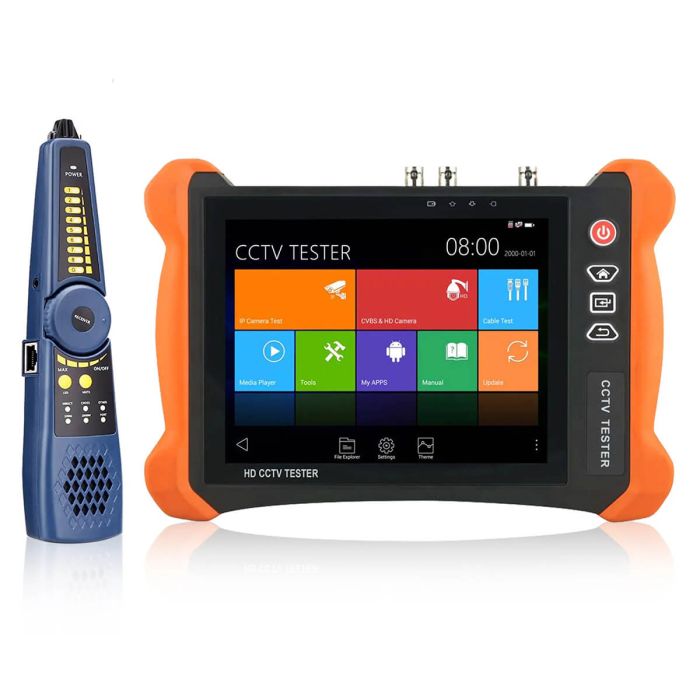

IPC-X9-ADHS 8K Security Camera Tester
IPC-X9-ADHS 8K Security Camera Tester
8" IPS Touch Screen CCTV Tester: 8K 32MP IP & 8MP TVI/CVI/AHD/SDI Testing | HDMI Input & Output | PoE & USB Power Output | Built-in Wi-Fi | Cable Tracer
-
SKU
-
IPC-X9-ADHS
Save $60.00 (10%)
Regular Price
$609.00
$549.00
Secure checkout
·
1-year warranty
·
30-day returns
Buying on behalf of a company?
We can help with:
-
✓
Proforma Invoice (PI)
-
✓
Bank Transfer (T/T)
-
✓
Bulk Order Pricing
-
✓
Company Invoice
-
✓
Dedicated Sales Support
Technical Specifications
|
Brand |
STEEDVISION |
|
Model |
IPC-X9-ADHS |
|
Operating System |
Android 11 |
|
CPU |
4-Core 2.0GHz |
|
Memory |
2GB LPDDR4 / 16GB eMMC |
|
Display |
8-inch IPS Touchscreen |
|
Resolution |
2048 × 1536 |
|
Battery |
Built-in 7.4V Lithium Polymer Battery, 7000mAh / 51.8Wh |
|
Working Time |
Up to 15 Hours |
|
Charging Time |
3–4 Hours |
|
Power Supply |
DC12V / 2A |
IP Camera Testing
|
IP Camera Test |
Up to 8K / 32MP |
|
ONVIF |
Supported |
|
RTSP Playback |
Supported |
|
Rapid Video |
Supported |
|
Hikvision Tool |
One-Click Activation & IP Configuration |
|
Dahua Tool |
IP Configuration Supported |
|
Dual Window Test |
IP & CVBS Simultaneous Testing |
|
Client APK Installation |
Supported |
Analog & Coaxial HD Testing
|
CVBS Input |
1 Channel BNC Input |
|
CVBS Output |
1 Channel BNC Looped Output |
|
Video Standard |
NTSC / PAL Auto Adaptive |
|
PTZ Control |
RS485, 600–115200bps |
|
PTZ Protocols |
PELCO-D/P, Samsung, Panasonic and 30+ Protocols |
|
TVI Support |
8MP 3840 × 2160P @ 15FPS |
|
CVI Support |
8MP 3840 × 2160P @ 12.5/15FPS |
|
AHD Support |
8MP 3840 × 2160P @ 15FPS |
|
SDI Support |
EX-SDI / HD-SDI / 3G-SDI |
|
UTC Control |
Supported |
|
OSD Menu Control |
Supported |
|
Coaxial Audio |
Supported |
Video Input & Output
|
HDMI Input |
4K 3840 × 2160P @ 30FPS |
|
HDMI Output |
4K 3840 × 2160P @ 60FPS |
|
Analog Video Output |
PAL / NTSC Color Bar Generator |
Power Output
|
Standard PoE Output |
DC48V, Max 25.5W |
|
12V Camera Power Output |
DC12V / 3A |
|
24V Camera Power Output |
DC24V / 2A |
|
USB Power Output |
DC5V / 2A |
Cable Testing
|
Wire Tracer |
BNC / RJ45 / Telephone Cable Detection |
|
Voltage Detector |
AC12V–1000V |
|
Safety Rating |
CAT III 1000V / CAT IV 600V |
|
UTP Cable Analysis |
Connection Status Display |
|
RJ45 TDR Analysis |
Cable Length / Attenuation / Reflectivity / Impedance / Skew |
|
RJ45 TDR Range |
Up to 180m |
|
TDR Cable Support |
BNC / Network / Telephone / RVV / Elevator Cable |
|
TDR Measurement Range |
Up to 1200m |
Network Functions
|
Ethernet Port |
Dual Gigabit RJ45 Ports |
|
Ethernet Speed |
10/100/1000Mbps Adaptive |
|
Wi-Fi Module |
Dual-Band 2.4GHz / 5GHz Wi-Fi |
|
Wi-Fi Speed |
Up to 433Mbps |
|
Ping Utility |
Supported |
|
Trace Route |
Supported |
|
DHCP Server |
Supported |
|
Port Flashing |
Supported |
|
Link Monitor |
Supported |
Audio & Data Functions
|
Audio Input |
1 Channel |
|
Audio Monitoring |
Supported |
|
Data Monitor |
Hexadecimal Data Capture & Analysis |
|
Screen Snapshot |
Supported |
|
Digital Zoom |
4× |
|
Playback |
Supported |
Languages
|
Supported Languages |
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more |
Working Environment
|
Working Temperature |
-10°C to +50°C |
|
Working Humidity |
30%–90% |
Dimensions & Weight
|
Package Dimensions |
2740g(6.04lbs) |
|
Package Weight |
350x300x100mm(13.78x11.81x3.94) |
|
Tester Dimensions |
260x183x43mm(10.23x7.2x1.69inch) |
|
Tester Weight |
1200g(2.65lbs) |
