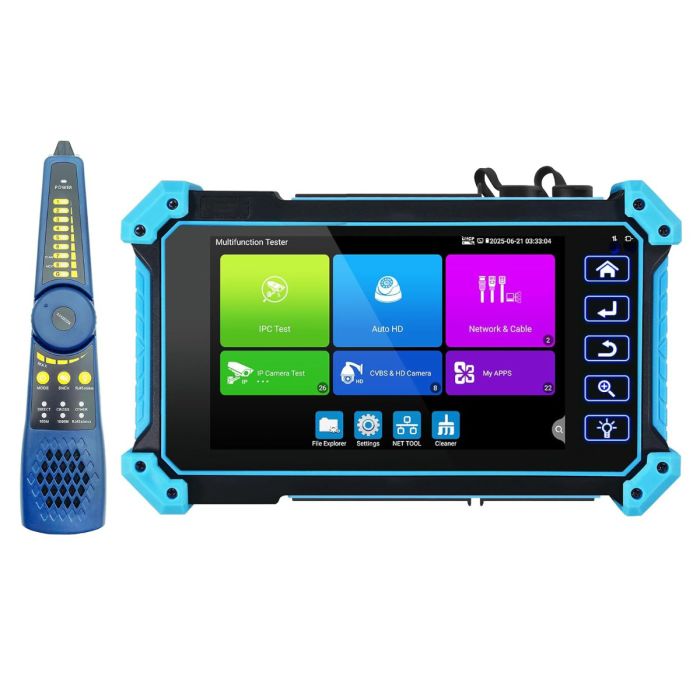

IPC-5200C Plus 8K Security Camera Tester
IPC-5200C Plus 8K Security Camera Tester
5 Inch IPS Touch Screen CCTV Tester: 32MP 8K IP + 8MP TVI/CVI/AHD + 8MP EX-SDI/HD-SDI/3G-SDI + CVBS test | Digital Cable Tracer | HDMI 4K input / VGA input | Built-in Wi-Fi | Standard PoE output
-
SKU
-
IPC-5200C Plus
Save $31.00 (10%)
Regular Price
$310.99
$279.99
Secure checkout
·
1-year warranty
·
30-day returns
Buying on behalf of a company?
We can help with:
-
✓
Proforma Invoice (PI)
-
✓
Bank Transfer (T/T)
-
✓
Bulk Order Pricing
-
✓
Company Invoice
-
✓
Dedicated Sales Support
Technical Specifications
|
Brand |
STEEDVISION |
|
Model |
IPC-5200C Plus |
|
Operating System |
Android |
|
CPU |
4-Core 1.2GHz |
|
Memory |
1GB DDR / 8GB eMMC |
|
Display |
5-inch IPS touchscreen |
|
Resolution |
1920 x 1152 |
|
Battery |
Built-in 7.4V lithium polymer battery, 3350mAh, 24.79Wh |
|
Working Time |
5-8 hours |
|
Charging Time |
3-4 hours |
|
Power Supply |
DC12V / 1A |
IP Camera Testing
|
IP Camera Test |
Up to 32MP / 8K |
|
ONVIF |
Supported |
|
RTSP Playback |
Supported |
|
Rapid Video |
Supported |
|
Hikvision Tool |
Supported |
|
Dahua Tool |
Supported |
|
Dual Window Test |
IP & CVBS Simultaneous Testing |
|
Client APK Installation |
Supported |
Analog & Coaxial HD Testing
|
CVBS Input |
1-channel BNC input |
|
Video Standard |
NTSC / PAL auto adaptive |
|
PTZ Control |
RS485, 600-115200bps |
|
PTZ Protocols |
PELCO-D/P, Samsung, Panasonic, and 30+ protocols |
|
TVI Support |
8MP 3840 x 2160p @ 12.5/15FPS |
|
CVI Support |
8MP 3840 x 2160p @ 12.5/15FPS |
|
AHD Support |
8MP 3840 x 2160p @ 15FPS |
|
SDI Support |
8MP EX-SDI / HD-SDI / 3G-SDI |
Video Input & Output
|
VGA Input |
1920 x 1200p @ 60FPS |
|
HDMI Input |
4K @ 30FPS |
Power Output
|
Standard PoE Output |
DC48V, Max 25.5W |
|
12V Camera Power Output |
DC12V / 3A |
Cable Testing
|
Wire Tracer |
Searches BNC, network and telephone cables from mixed cables |
|
UTP Cable Analysis |
Tests UTP connection status and displays near-end / mid-end / far-end network cable plug faults |
|
RJ45 TDR Range |
Up to 180m |
|
TDR Cable Support |
Pair status, length, attenuation, reflectivity, impedance and skew; can create test report |
Network Functions
|
Wi-Fi Module |
Built-in 2.4GHz Wi-Fi |
|
Wi-Fi Speed |
150Mbps |
|
Ping Utility |
Supported |
|
Trace Route |
Supported |
|
DHCP Server |
Supported |
|
Port Flashing |
Supported |
|
Link Monitor |
Supported |
Audio & Data Functions
|
Audio Input |
1 channel audio signal input |
|
Data Monitor |
Captures/analyzes command data and can send hexadecimal data |
|
Screen Snapshot |
Supported |
|
Video Recording |
Supported |
|
Digital Zoom |
4× |
|
Playback |
Supported |
Languages
|
Supported Languages |
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more |
Working Environment
|
Working Temperature |
-10 C to +50 C (14 F to 122 F) |
|
Working Humidity |
30% to 90% |
Dimensions & Weight
|
Package Dimensions |
260 x 143 x 100mm (10.24 x 5.63 x 3.94in) |
|
Package Weight |
1.15kg (2.54lbs) |
|
Tester Dimensions |
183 x 110 x 36.5mm (7.2 x 4.33 x 1.44in) |
|
Tester Weight |
0.4kg (0.88lbs) |
Package Contents
|
Camera Tester |
x1 |
|
Tool Bag |
x1 |
|
Power Adapter |
x1 |
|
Shoulder Strap |
x1 |
|
Power Output Cable |
x1 |
|
BNC Video Cable |
x1 |
|
RS485 Control Cable |
x1 |
|
Audio Test Cable |
x1 |
|
Wire Finder |
x1 |
