IPC-X9 Series
The IPC-X9 series has the largest screen of our 8K testers: an 8-inch display that makes it easier to judge focus and image detail. All three models test IP cameras up to 8K / 32MP and 8MP TVI, CVI and AHD cameras, supply PoE up to 25.5W, and include a wire tracer, RJ45 TDR up to 180m and long-range TDR up to 1200m on BNC, network, telephone, RVV and elevator cable.
IPC-X9 models compared
| Model | SDI | Fiber tools |
|---|---|---|

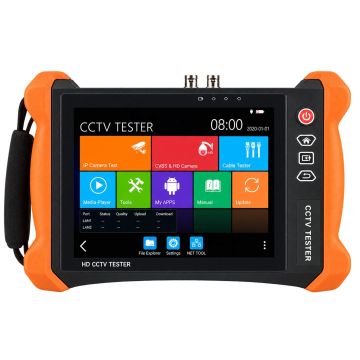

| IPC-X9-ADH | No | No |

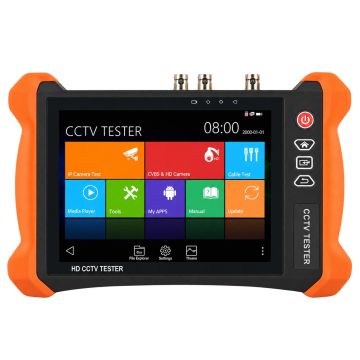

| IPC-X9-ADHS | EX / HD / 3G-SDI | No |

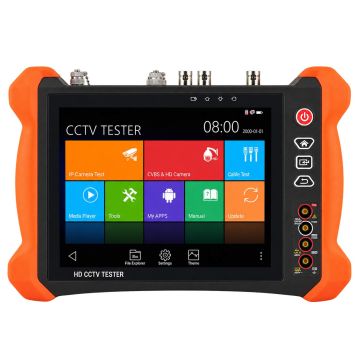

| IPC-X9-MOVTADHS | EX / HD / 3G-SDI | Optical power meter, 10mW VFL |
Which IPC-X9 to choose
- IP and analog HD sites: the IPC-X9-ADH.
- Sites with SDI cameras: the IPC-X9-ADHS.
- Fiber work: the IPC-X9-MOVTADHS adds an optical power meter and a visual fault locator.
Prefer a 7-inch tester? See the IPC-X7 series. Need 90W PoE++ or an SFP slot? See the IPC-9800 Pro+ series. Browse all CCTV testers.
