IPC-7600COVTADHS Plus 8K IP, Coax & SDI Camera Tester with OPM, VFL, TDR and Cable Tracer
IPC-7600COVTADHS Plus 8K IP, Coax & SDI Camera Tester with OPM, VFL, TDR and Cable Tracer
7-inch 8K IP, coax and SDI camera tester with optical power meter, 10mW visual fault locator, 1200m hardware TDR and included cable tracer.
SKU
IPC-7600COVTADHS-PLUS
Save $40.00 (7%)
Regular Price
$549.00
$ 509 .00
Quantity
·
·
Buying for your business?
Buying on behalf of a company?
We can help with:
✓
Proforma Invoice (PI)
✓
Bank Transfer (T/T)
✓
Bulk Order Pricing
✓
Company Invoice
✓
Dedicated Sales Support
Description
Professional Features
Description

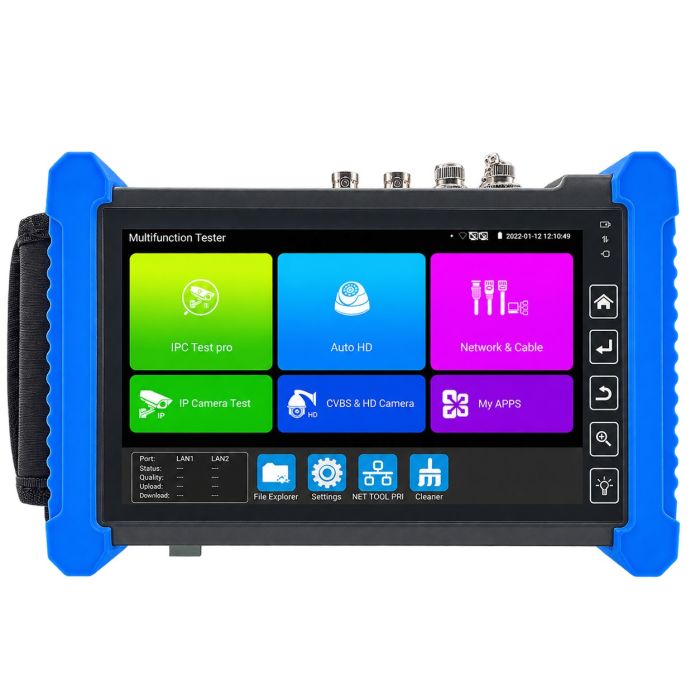

IPC-7600COVTADHS Plus The IPC-7600COVTADHS Plus is the most complete 7600 Plus model, combining camera testing with optical power, visual fault location and hardware TDR in one 7-inch unit.
Key Capabilities IP camera testing up to 8K / 32MP; 8MP TVI / CVI / AHD, SDI and CVBS testing Optical power meter: 850–1625nm, -70 to +10dBm, FC/PC Visual fault locator: 650nm, 10mW, up to 8km Hardware TDR for BNC, network, telephone, RVV and elevator cable, up to 1200m Included cable tracer for BNC, network and telephone cables, with AC voltage detector 802.3af/at PoE up to 30W, HDMI in/out, VGA input and RS485 PTZ
Professional Features
Technical Specifications
Brand
STEEDVISION
Model
IPC-7600COVTADHS Plus
Operating System
Android 9.0
Display
7-inch IPS Touchscreen
Resolution
1280 × 800
Battery
Built-in 7.4V Lithium Polymer Battery, 7800mAh, 57.72Wh
Working Time
Up to 11 Hours
Charging Time
About 4 Hours
Power Supply
DC12V / 2A
IP Camera Testing
IP Camera Test
Up to 8K / 32MP
ONVIF
Supported
Rapid Video
Rapid ONVIF: Auto Login, Video View & Test Report
Hikvision Tool
One-Key Activation, Batch Activation & Parameter Modification
Dahua Tool
Batch Activation & IP Configuration
Analog & Coaxial HD Testing
CVBS Input
1 Channel BNC Input
Video Standard
NTSC / PAL Auto Adaptive
PTZ Control
RS485, 600–115200bps
PTZ Protocols
30+ Protocols
TVI Support
8MP 3840 × 2160P @ 12.5/15FPS
CVI Support
8MP 3840 × 2160P @ 12.5/15FPS
AHD Support
8MP 3840 × 2160P @ 15FPS
SDI Support
EX-SDI / HD-SDI / 3G-SDI, 8MP 3840 × 2160P @ 25/30FPS
UTC Control
Supported
OSD Menu Control
Supported
Video Input & Output
VGA Input
1280 × 1024P @ 60FPS
HDMI Input
4K @ 30FPS
HDMI Output
4K @ 60FPS
Power Output
Standard PoE Output
IEEE 802.3af/at, DC48V, Max 30W
12V Camera Power Output
DC12V / 3A
24V Camera Power Output
DC24V / 2A
USB Power Output
DC5V / 2A
Cable Testing
Wire Tracer
BNC / RJ45 / Telephone Cable Detection
Voltage Detector
AC12V–1000V
Safety Rating
CAT III 1000V / CAT IV 600V
UTP Cable Analysis
Connection Status Display
RJ45 TDR Analysis
Pair Status / Cable Length / Attenuation / Reflectivity / Impedance / Skew
RJ45 TDR Range
Up to 180m
TDR Cable Support
BNC / Network / Telephone / RVV / Elevator / Cat5/6 Cable
TDR Measurement Range
Up to 1200m
Fiber Optic Testing
Optical Power Meter (OPM)
Supported
OPM Wavelength
850 / 1300 / 1310 / 1490 / 1550 / 1625nm
OPM Measurement Range
-70dBm ~ +10dBm
OPM Accuracy
<±3%dB (-10dBm, 22°C)
Full Scale Accuracy
<±5%dB (Full Scale, 22°C)
Display Resolution
0.1% (Linear) / 0.01dBm (Logarithmic)
Visual Fault Locator (VFL)
10mW
VFL Wavelength
650nm
VFL Range
Up to 8km
Connector
FC/PC
Video Signal Analysis
Video Level Meter
Supported
Peak Video Signal Level
Supported
SYNC Signal Level
Supported
Network Functions
Wi-Fi Module
Built-in 2.4GHz Wi-Fi
Wi-Fi Speed
150Mbps
Ping Utility
Supported
Trace Route
Supported
DHCP Server
Supported
Port Flashing
Supported
Link Monitor
Supported
Audio & Data Functions
Audio Input
1 Channel
Audio Monitoring
Supported
Data Monitor
Hexadecimal Data Capture & Send
Screen Snapshot
Supported
Video Recording
Supported
Digital Zoom
4×
Playback
Supported
Screen Mirroring
Android Phone / PC Display Supported
Languages
Supported Languages
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Serbian, Czech, Vietnamese and more
Working Environment
Working Temperature
-10°C to +50°C
Working Humidity
30%–90%
Dimensions & Weight
Tester Dimensions
203x140x47mm(8x5.5x1.85inch)
Tester Weight
940g(2.07lbs)
