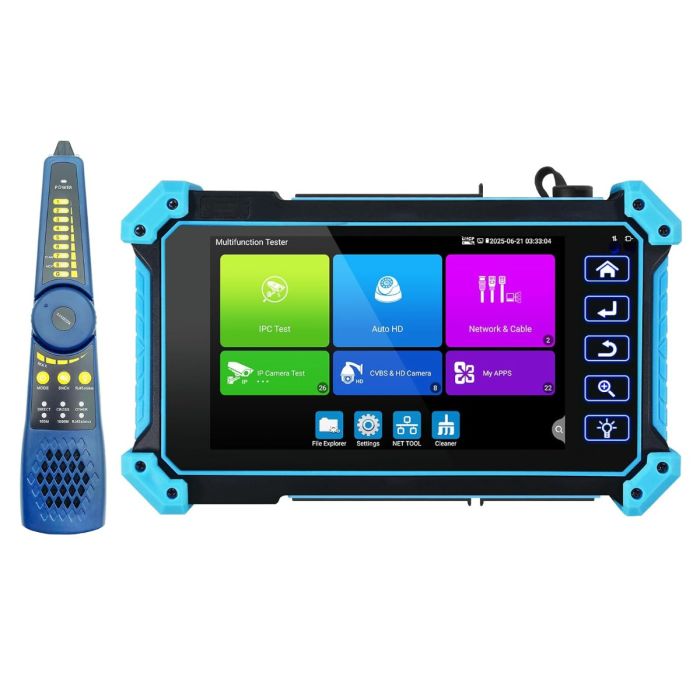

IPC-5100C Plus 8K security camera tester with Cable Tracker
IPC-5100C Plus 8K security camera tester with Cable Tracker
5.4" IPS Touchscreen CCTV Tester: 8K IP & 8MP AHD/TVI/CVI + CVBS Test | HDMI Input & VGA Input / Analog Video in | Cable Tracker
-
SKU
-
IPC-5100C Plus
Save $26.00 (9%)
Regular Price
$285.99
$259.99
Secure checkout
·
1-year warranty
·
30-day returns
Buying on behalf of a company?
We can help with:
-
✓
Proforma Invoice (PI)
-
✓
Bank Transfer (T/T)
-
✓
Bulk Order Pricing
-
✓
Company Invoice
-
✓
Dedicated Sales Support
Technical Specifications
|
Brand |
STEEDVISION |
|
Model |
IPC-5100C Plus |
|
Operating System |
Android |
|
CPU |
4-Core 1.2GHz |
|
Memory |
1GB DDR / 8GB eMMC |
|
Display |
5-inch IPS Touchscreen |
|
Resolution |
1920 × 1080 Full HD |
|
Battery |
Built-in 7.4V Lithium Polymer Battery, 3350mAh, 24.79Wh |
|
Working Time |
5–8 Hours |
|
Charging Time |
3–4 Hours |
IP Camera Testing
|
IP Camera Test |
Up to 8K / 32MP |
|
ONVIF |
Supported |
|
RTSP Playback |
Supported |
|
Rapid Video |
Supported |
|
Hikvision Tool |
Supported |
|
Dual Window Test |
Supported |
|
Client APK Installation |
Supported |
Analog & Coaxial HD Testing
|
CVBS Input |
1 Channel BNC Input |
|
Video Standard |
NTSC / PAL Auto Adaptive |
|
PTZ Control |
RS485, 600–115200bps |
|
PTZ Protocols |
PELCO-D/P, Samsung, Panasonic and 30+ Protocols |
|
TVI Support |
8MP 3840 × 2160P @ 12.5/15 FPS |
|
CVI Support |
8MP 3840 × 2160P @ 12.5/15 FPS |
|
AHD Support |
8MP 3840 × 2160P @ 15FPS |
|
UTC Control |
Supported |
|
OSD Menu Control |
Supported |
Video Input & Output
|
VGA Input |
1920 × 1200P @ 60FPS |
|
HDMI Input |
4K @ 30FPS |
Power Output
|
Standard PoE Output |
DC48V, Max 25.5W |
|
12V Camera Power Output |
DC12V / 3A |
Cable Testing
|
Wire Tracer |
Digital Cable Tracer Included (BNC / RJ45 / Telephone Cable Detection) |
|
UTP Cable Analysis |
Connection Status Display (Detects near-end, mid-end, and far-end faults) |
|
RJ45 TDR Analysis |
Cable Pair Status / Length / Attenuation / Reflectivity / Impedance / Skew (Creates test report) |
|
RJ45 TDR Range |
Up to 180m |
Network Functions
|
Ethernet Port |
RJ45 Port Supported |
|
Wi-Fi Module |
Built-in 2.4GHz Wi-Fi |
|
Wi-Fi Speed |
150Mbps |
|
Ping Utility |
Supported |
|
Trace Route |
Supported |
|
DHCP Server |
Supported |
|
Port Flashing |
Supported |
|
Link Monitor |
Supported |
Audio & Data Functions
|
Audio Input |
1 Channel |
|
Audio Monitoring |
Supported |
|
Data Monitor |
Captures and analyzes command data from controlling device |
|
Screen Snapshot |
Supported |
|
Video Recording |
Supported |
|
Digital Zoom |
4× |
|
Power Monitoring |
Tester, mobile phone, and PC display simultaneously (Android only) |
Languages
|
Supported Languages |
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, German (Deutsch), Turkish, Portuguese, Czech, and more |
Working Environment
|
Working Temperature |
-10°C to +50°C (14°F to 122°F) |
|
Working Humidity |
30%–90% |
Dimensions & Weight
|
Package Dimensions |
183x110x36.5mm(7.2x4.33x1.44inch) |
|
Package Weight |
1.15kg(2.54lbs) |
|
Tester Dimensions |
260x143x100mm(10.24x5.63x3.94inch) |
|
Tester Weight |
0.4kg(0.88lb) |
