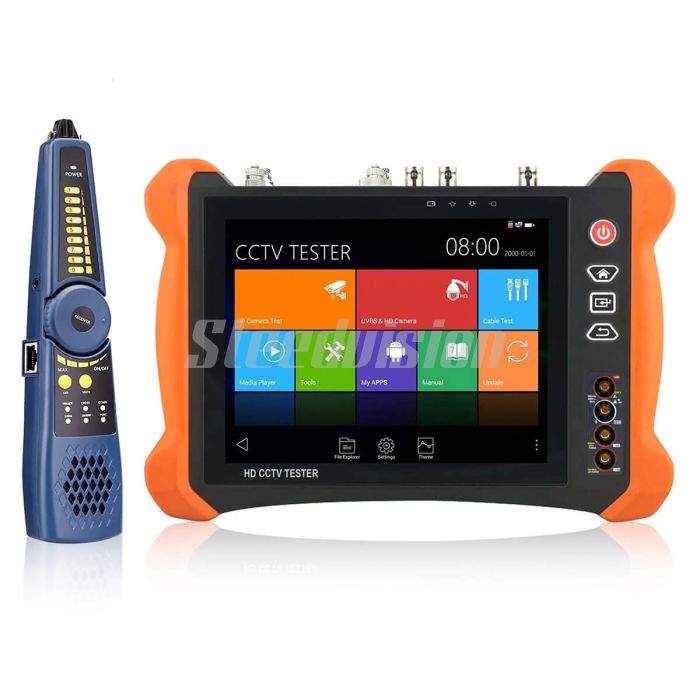

IPC-X9-MOVTADHS 8K Security Camera Tester

Product Details

Screen Size	8-inch

Technical Specifications

Brand	STEEDVISION
Model	X9-MOVTADHS
Operating System	Android 11
CPU	4-Core 2.0GHz
Memory	2GB LPDDR4 / 16GB eMMC
Display	8-inch IPS Touchscreen
Resolution	2048 × 1536
Battery	Built-in 7.4V Lithium Polymer Battery, 7000mAh / 51.8Wh
Working Time	Up to 15 Hours
Charging Time	3–4 Hours
Power Supply	DC12V / 2A

IP Camera Testing

IP Camera Test	Up to 8K / 32MP
ONVIF	Supported
RTSP Playback	Supported
Rapid Video	Supported
Hikvision Tool	One-Click Activation & IP Configuration
Dahua Tool	IP Configuration Supported
Dual Window Test	IP & CVBS Simultaneous Testing
Client APK Installation	Supported

Analog & Coaxial HD Testing

CVBS Input	1 Channel BNC Input
CVBS Output	1 Channel BNC Looped Output
Video Standard	NTSC / PAL Auto Adaptive
PTZ Control	RS485, 600–115200bps
PTZ Protocols	PELCO-D/P, Samsung, Panasonic and 30+ Protocols
TVI Support	8MP 3840 × 2160P @ 15FPS
CVI Support	8MP 3840 × 2160P @ 12.5/15FPS
AHD Support	8MP 3840 × 2160P @ 15FPS
SDI Support	EX-SDI / HD-SDI / 3G-SDI
UTC Control	Supported
OSD Menu Control	Supported
Coaxial Audio	Supported

Video Input & Output

HDMI Input	4K 3840 × 2160P @ 30FPS
HDMI Output	4K 3840 × 2160P @ 60FPS
Analog Video Output	PAL / NTSC Color Bar Generator

Power Output

Standard PoE Output	DC48V, Max 25.5W
12V Camera Power Output	DC12V / 3A
24V Camera Power Output	DC24V / 2A
USB Power Output	DC5V / 2A

Cable Testing

Wire Tracer	BNC / RJ45 / Telephone Cable Detection
Voltage Detector	AC12V–1000V
Safety Rating	CAT III 1000V / CAT IV 600V
UTP Cable Analysis	Connection Status Display
RJ45 TDR Analysis	Cable Length / Attenuation / Reflectivity / Impedance / Skew
RJ45 TDR Range	Up to 180m
TDR Cable Support	BNC / Network / Telephone / RVV / Elevator Cable
TDR Measurement Range	Up to 1200m

Digital Multimeter (DMM)

DC/AC Voltage	Up to 660V
DC/AC Current	Up to 10A
Resistance	Up to 66MΩ
Capacitance	Up to 66mF
Continuity Test	Supported
Diode Test	Supported
Auto Range	Supported

Fiber Optic Testing

Optical Power Meter (OPM)	Supported
OPM Wavelength	850 / 1300 / 1310 / 1490 / 1550 / 1625nm
OPM Measurement Range	-70dBm ~ +10dBm
OPM Accuracy	<±3%dB (-10dBm, 22°C)
Full Scale Accuracy	<±5%dB (Full Scale, 22°C)
Display Resolution	0.1% (Linear) / 0.01dBm (Logarithmic)
Visual Fault Locator (VFL)	10mW
VFL Wavelength	650nm
VFL Range	Up to 10km
Fiber Type	Single Mode / Multi Mode
Fiber Diagnostics	Fiber Bending & Breakage Detection
Connector	FC/PC

Video Signal Analysis

Video Level Meter	Supported
Peak Video Signal Level	Supported
SYNC Signal Level	Supported

Network Functions

Ethernet Port	Dual Gigabit RJ45 Ports
Ethernet Speed	10/100/1000Mbps Adaptive
Wi-Fi Module	Dual-Band 2.4GHz / 5GHz Wi-Fi
Wi-Fi Speed	Up to 433Mbps
Ping Utility	Supported
Trace Route	Supported
DHCP Server	Supported
Port Flashing	Supported
Link Monitor	Supported

Audio & Data Functions

Audio Input	1 Channel
Audio Monitoring	Supported
Data Monitor	Hexadecimal Data Capture & Analysis
Screen Snapshot	Supported
Digital Zoom	4×
Playback	Supported

Languages

Supported Languages	English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more

Working Environment

Working Temperature	-10°C to +50°C
Working Humidity	30%–90%

Dimensions & Weight

Package Dimensions	350x300x100mm(13.78x11.81x3.94)
Package Weight	2740g(6.04lbs)
Tester Dimensions	260x183x43mm(10.23x7.2x1.69inch)
Tester Weight	1200g(2.65lbs)
