IPC-7600 Plus Series
The IPC-7600 Plus series are 7-inch 8K camera testers built around power and video inputs. All three models test IP cameras up to 8K / 32MP and 8MP TVI, CVI and AHD cameras, and supply 802.3af/at PoE up to 30W plus DC12V / 3A and DC24V / 2A camera power. They add 4K HDMI input and output, VGA input, a wire tracer for BNC, RJ45 and telephone cable, RJ45 TDR up to 180m, and an AC 12V to 1000V voltage detector, with up to 11 hours of battery life.
IPC-7600 Plus models compared
| Model | SDI | Long-range TDR | Fiber tools |
|---|---|---|---|

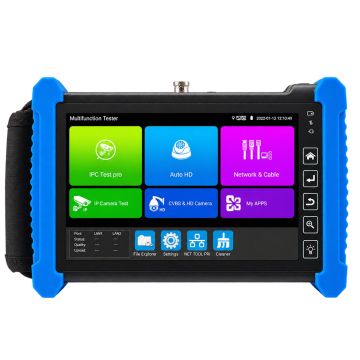

| IPC-7600CADH Plus | No | No | No |

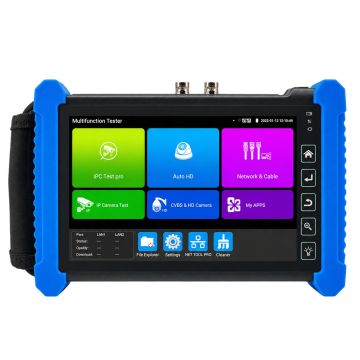

| IPC-7600CADHS Plus | 8MP EX / HD / 3G-SDI | No | No |

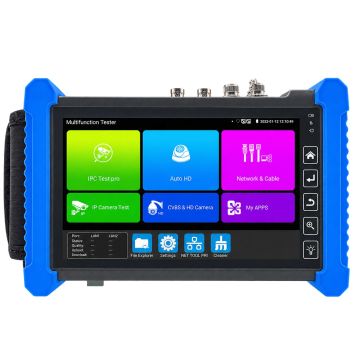

| IPC-7600COVTADHS Plus | 8MP EX / HD / 3G-SDI | Up to 1200m | Optical power meter, 10mW VFL |
Which IPC-7600 Plus to choose
- 24V cameras: every model has a DC24V / 2A output, useful for PTZ and other 24V cameras that do not run on PoE.
- Sites with SDI cameras: choose the CADHS or COVTADHS.
- Long cable runs and fiber: the COVTADHS adds TDR up to 1200m on BNC, network, telephone, RVV and elevator cable, an optical power meter, a visual fault locator and a video level meter.
Need 90W PoE++ or an SFP slot? See the IPC-9800 Pro+ series. Browse all CCTV testers.
