IPC-9800ADH Pro+ 8K IP & TVI/CVI/AHD Camera Tester with 90W PoE++ and SFP

For mixed sites: test IP cameras and 8MP TVI, CVI and AHD coaxial cameras with one tester.

✓ 8K / 32MP IP, 8MP TVI / CVI / AHD and analog CVBS cameras
✓ HDMI and VGA inputs to check NVR and DVR video output
✓ 90W PoE++ output, Gigabit SFP fiber port, HDMI output
✓ RJ45 TDR cable test up to 180m, RS485 PTZ control

No SDI input. For SDI cameras, choose the IPC-9800ADHS Pro+.

$349.99
Shipping Calculating...
Free Shipping
Delivering to
Contact us for shipping availability and estimated delivery.
Duties & taxes included, no fees on delivery

In stock

  • Secure payment
  • 30-day returns
  • Money-back protection
  • 1-year warranty

SKU: IPC-9800ADH-PRO+

Description

Why installers carry it

Built for the job site.

Connections

Every port you need, on one tester.

PoE++, SFP and video ports connect your field equipment.

7-inch 1280 × 800 IPS touchscreen running Android 11, with a hardware keypad for PTZ and menu control.

  1. 12V out Two DC jacks, 12V 3A camera power
  2. LAN1 · PSE in Gigabit RJ45, RJ45 TDR
  3. LAN2 · PoE Gigabit RJ45, PoE++ out up to 90W
  4. CVBS out BNC loop out, PAL/NTSC color bars
  5. SFP Gigabit fiber module slot
  6. Analog in BNC, AHD / CVI / TVI 8MP and CVBS

Fold-out stand and a screw-secured 11.1V 5200mAh (57.72Wh) battery pack.

  1. DC15V in Charging and power input
  2. 24V out Terminal block, 24V 2A camera power
  3. USB out 5V 2A
  4. Audio Audio in / out
  5. HDMI out 4K @ 60FPS
  6. Cable test UTP cable test and scan
  7. VGA in 1080P @ 60FPS
  8. HDMI in 4K @ 30FPS
IPC-9800ADH Pro+ front: 7-inch touchscreen and keypad
IPC-9800ADH Pro+ top edge: 12V outputs, dual RJ45, CVBS out, SFP and analog BNC input
IPC-9800ADH Pro+ back: fold-out stand and battery compartment
IPC-9800ADH Pro+ bottom edge: 15V in, 24V and USB outputs, audio, HDMI out, cable test, VGA in and HDMI in

Coaxial HD

TVI, CVI and AHD, up to 8MP.

Test 8MP TVI, CVI and AHD cameras with UTC control.

8MP

Video input

Check the recorder as well.

Check recorder video with 4K HDMI and 1080P VGA inputs.

HDMI

Built-in tools

Brand tools, no laptop.

Discover cameras with ONVIF and built-in brand tools.

IP Camera Test menu with ONVIF, PoE++ detection, IP discovery and Hikvision tools

PoE++ output

Power the camera from the tester.

Power cameras with up to 90W PoE++ from the tester.

90W

IP camera test

Ready for 8K cameras.

Preview 8K / 32MP IP cameras over ONVIF and RTSP.

8K

Fiber

Gigabit SFP, built in.

Test gigabit fiber links through the built-in SFP slot.

1G

Cable diagnostics

Find the fault, not the whole run.

Locate RJ45 opens and shorts up to 180m away.

180m

One install, start to finish

Trace and test the cable TDR 180m

Step 1

Trace and test the cable

Check RJ45 continuity and fault distance with TDR before connecting the camera.

Need to trace unlabeled cables? Add the WT255 tracer →

Check and supply power 90W PoE++

Step 2

Check and supply power

Power the camera directly with 90W PoE++ or DC output.

Need to measure voltage? Compare models →

Bring up the camera 8K / 32MP

Step 3

Bring up the camera

Preview 8K IP, CVBS or 8MP TVI/CVI/AHD cameras before mounting.

Check the link Gigabit SFP

Step 4

Check the link

Check the connection over gigabit RJ45 or SFP at the installation point.

Need to test fiber links? Compare models →

Aim the PTZ RS485

Step 5

Aim the PTZ

Use RS485 control to set the camera angle and check PTZ movement.

Confirm at the recorder HDMI in 4K

Step 6

Confirm at the recorder

View the recorder output through HDMI or VGA input before signing off.

IPC-9800ADH Pro+ Security Camera Tester

IP and Coaxial HD Camera Testing, up to 8K and 8MP.

Test 8K IP, 8MP TVI / CVI / AHD and CVBS cameras, check NVR and DVR output through HDMI and VGA input, and power cameras with 90W PoE++.

Up to 8K / 32MP IP 8MP TVI / CVI / AHD HDMI & VGA Input 90W PoE++ Gigabit SFP RJ45 TDR 180m

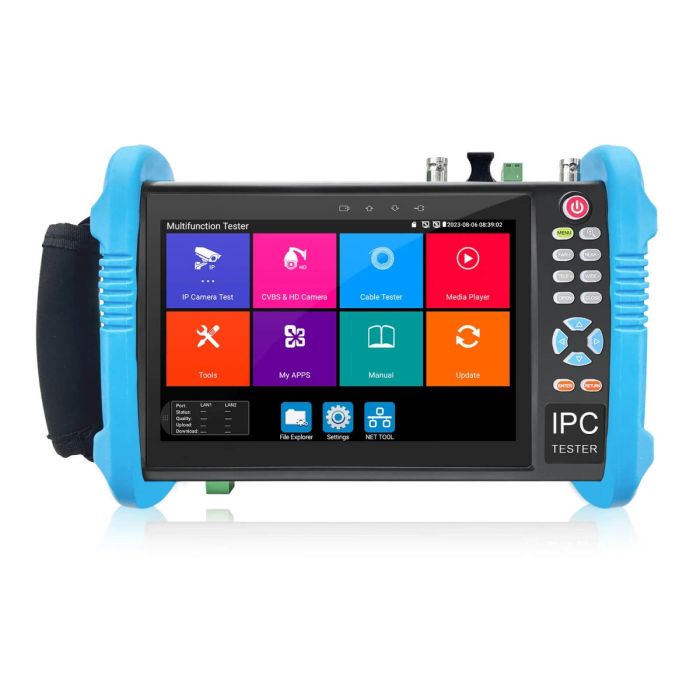

IPC-9800ADH Pro+ front view with 7-inch IPS touchscreen
7-inch 1280 × 800 IPS touchscreen running Android 11, with a hardware keypad for PTZ and menu control.

Camera Testing

Cameras the IPC-9800ADH Pro+ Tests

Connect the camera at the installation point and confirm the picture, settings and PTZ before you leave the ladder.

01IP cameras up to 8K

Preview IP cameras up to 8K / 32MP over ONVIF and RTSP, run the built-in Hikvision and Dahua tools, find IP conflicts, and install a client APK for other brands.

02Analog CVBS

One BNC input for CVBS cameras, a BNC loop output, a PAL / NTSC color bar generator for checking monitors, and dual-window IP and CVBS testing.

038MP TVI / CVI / AHD

TVI, CVI and AHD cameras up to 8MP (3840 × 2160P) with NTSC / PAL auto detection, UTC and OSD menu control, TVI 5.0 coaxial audio, and PELCO-D/P plus 30+ PTZ protocols.

SDI cameras are not supported on the IPC-9800ADH Pro+. For SDI, see the comparison below.

IPC-9800ADH Pro+ IPC Test camera search and preview screen
IP camera preview and setup.
IPC-9800ADH Pro+ TVI 1080P coaxial live preview screen
Coaxial HD camera test on the BNC input.

Power and Network

Power the Camera and Check the Link

Many "dead camera" calls are a power budget or network problem. The IPC-9800ADH Pro+ supplies the camera itself and checks the link it sits on.

01Up to 90W PoE++

55V PoE++ up to 90W (IEEE 802.3af/at/bt) for high-draw PTZ cameras, standard 48V PoE up to 25.5W, DC12V 3A, DC24V 2A and USB 5V 2A outputs, with real-time voltage and power display.

02Gigabit RJ45 and SFP

Dual gigabit RJ45 ports (10/100/1000Mbps) and a gigabit SFP slot for a standard fiber module, plus 2.4GHz Wi-Fi.

03Network tools

IP discovery, ping, trace route, DHCP server, port flashing and link monitor, so you can find the camera and prove the path to the recorder.

IPC-9800ADH Pro+ PoE++ and DC power output setup
PoE++ and DC outputs power the camera without an injector.
IPC-9800ADH Pro+ RJ45 and Gigabit SFP network check
Check copper and fiber links from the same tester.

Cable Checks

Find the Cable Fault Before Replacing the Camera

01RJ45 TDR up to 180m

Checks pair status, length, attenuation, reflectivity, impedance and skew, and finds the distance to an open or short.

02UTP cable test

Shows the connection status of each pair, so a miswired or broken connector is found before the camera is replaced.

03Cable tracer option

Need to trace unlabelled BNC, RJ45 and telephone cables? Choose the IPC-9800CADH Pro+ with a WT255 cable tracer in the box, or add the WT255 separately.

IPC-9800ADH Pro+ RJ45 TDR test showing Port 1 and Port 2 wire-pair status and length
Locate the faulty run instead of pulling new cable.

Video Path and PTZ

Check the Display Path and PTZ Control

01HDMI and VGA

HDMI output up to 4K @ 60FPS sends the test picture to a larger monitor; HDMI input up to 4K @ 30FPS and VGA input at 1080P @ 60FPS show what the NVR or DVR is outputting.

02RS-485 PTZ control

RS-485 at 600–115200bps to pan, tilt and zoom the camera and confirm its address and baud rate.

03Record and report

Audio input and monitoring, hexadecimal data capture, snapshots, video recording and playback, 4× digital zoom, and screen mirroring to a phone or PC.

IPC-9800ADH Pro+ coaxial UTC/PTZ control screen
PTZ control over RS-485.

Compare models

Available IPC-9800 models compared
Feature
Viewing this item
IPC-9800ADH-PRO+

$349.99

ADH Pro+
IPC-9800-PRO+

$309.99

9800 Pro+
IPC-9800ADHS-PRO+

$374.99

ADHS Pro+
IPC-9800CMADHS-PRO+

$419.99

CMADHS Pro+
IPC-9800MOVTADHS-Pro+

$599.99

MOVTADHS Pro+
8K / 32MP IP camera test Up to 8K / 32MP Up to 8K / 32MP Up to 8K / 32MP Up to 8K / 32MP Up to 8K / 32MP
Analog CVBS camera test 1 Channel BNC Input 1 Channel BNC Input 1 Channel BNC Input 1 Channel BNC Input 1 Channel BNC Input
8MP TVI / CVI / AHD camera test Supported Not supported Supported Supported Supported
8MP SDI camera test Not supported Not supported EX-SDI / HD-SDI / 3G-SDI EX-SDI / HD-SDI / 3G-SDI EX-SDI / HD-SDI / 3G-SDI
Gigabit SFP interface Supported Supported Supported Supported Supported
Hi-PoE / PoE++ Supported Supported Supported Supported Supported
HDMI input 4K @ 30FPS Not supported 4K @ 30FPS 4K @ 30FPS 4K @ 30FPS
HDMI output Supported Supported Supported Supported Supported
VGA input 1080P @ 60FPS Not supported 1080P @ 60FPS 1080P @ 60FPS 1080P @ 60FPS
RS485 Supported Supported Supported Supported Supported
Includes digital cable tracer Not included Not included Not included Included Included
TDR cable test 180m 180m 180m 180m 1200m
Optical power meter Not supported Not supported Not supported Not supported Supported
Digital multimeter Not supported Not supported Not supported Up to 660V Up to 660V
Visual fault locator Not supported Not supported Not supported Not supported Supported
Compare all specs

What's in the box

  • Main unit

    Main unit

  • Tool bag

    Tool bag

  • RJ45 cable tester remote

    RJ45 cable tester remote

  • Screwdriver

    Screwdriver

  • Audio test cable

    Audio test cable

  • RS-485 control cable

    RS-485 control cable

  • Shoulder straps

    Shoulder straps

  • BNC video cable

    BNC video cable

  • AC power adapter

    AC power adapter

  • Hand strap

    Hand strap

  • DC power output cable

    DC power output cable

  • User manual

    User manual

Specifications

Product Details

Screen Size 7-inch

Technical Specifications

Brand Steedvision
Model IPC-9800ADH-PRO+
Operating System Android 11
CPU 4-Core 2.0GHz
Memory 2GB RAM / 32GB eMMC
Display 7-inch IPS Touchscreen
Resolution 1280 × 800
Battery 11.1V Lithium-ion Battery Pack, 5200mAh, 57.72Wh
Power Supply DC15V Input

IP Camera Testing

IP Camera Test Up to 8K / 32MP
ONVIF Supported
RTSP Playback Supported
Rapid Video Supported
Hikvision Tool Supported
Dahua Tool Supported
Dual Window Test IP & CVBS Simultaneous Testing
Client APK Installation Supported

Analog & Coaxial HD Testing

CVBS Input 1 Channel BNC Input
CVBS Output 1 Channel BNC Looped Output
Video Standard NTSC / PAL Auto Adaptive
PTZ Control RS485, 600–115200bps
PTZ Protocols PELCO-D/P, Samsung, Panasonic and 30+ Protocols
TVI Support 8MP 3840 × 2160P @ 15FPS
CVI Support 8MP 3840 × 2160P @ 12.5/15FPS
AHD Support 8MP 3840 × 2160P @ 15FPS
UTC Control Supported
OSD Menu Control Supported
Coaxial Audio Supported (TVI 5.0 only)

Video Input & Output

VGA Input 1080P @ 60FPS
HDMI Input 4K @ 30FPS
HDMI Output 4K @ 60FPS
Analog Video Output PAL / NTSC Color Bar Generator

Power Output

Standard PoE Output DC48V, Max 25.5W
PoE++ Output 55V, Max 90W, IEEE 802.3af/at/bt
12V Camera Power Output DC12V / 3A
24V Camera Power Output DC24V / 2A
USB Power Output DC5V / 2A

Cable Testing

UTP Cable Analysis Connection Status Display
RJ45 TDR Analysis Pair Status / Length / Attenuation / Reflectivity / Impedance / Skew
RJ45 TDR Range Up to 180m

Network Functions

Ethernet Port Dual Gigabit RJ45 Ports
Ethernet Speed 10/100/1000Mbps Adaptive
SFP Port 1× Gigabit SFP Slot (Fiber Module Supported)
Wi-Fi Module Built-in 2.4GHz Wi-Fi
Wi-Fi Speed 150Mbps
Ping Utility Supported
Trace Route Supported
DHCP Server Supported
Port Flashing Supported
Link Monitor Supported

Audio & Data Functions

Audio Input 1 Channel
Audio Monitoring Supported
Data Monitor Hexadecimal Data Capture & Analysis
Screen Snapshot Supported
Video Recording Supported
Digital Zoom 4×
Playback Supported
Power Monitoring Real-Time Voltage & Power Display
Screen Mirroring Android Phone / PC Display Supported

Languages

Supported Languages English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more

Working Environment

Working Temperature -10°C to +50°C
Working Humidity 30%–90%

Dimensions & Weight

Package Dimensions 320x290x100mm(12.6x11.4x3.94inch)
Package Weight 2090g(4.61lbs)
Tester Dimensions 240x135x35mm(9.4x5.3x1.4inch)
Tester Weight 1050g(2.31lbs)
User Manual (PDF, 1.7 MB) (opens in a new tab)

FAQ

Which cameras can the IPC-9800ADH Pro+ test?

IP cameras up to 8K / 32MP over ONVIF and RTSP, TVI / CVI / AHD coaxial HD cameras up to 8MP and analog CVBS cameras (PAL / NTSC).

Does it work with Hikvision and Dahua cameras?

Yes. Besides standard ONVIF and RTSP, it has built-in Hikvision and Dahua test tools, so cameras from both brands can be found and checked on site without a laptop.

Can it power a PTZ camera without a switch or injector?

Yes. It supplies PoE++ (55V, max 90W, IEEE 802.3af/at/bt), standard PoE (DC48V, max 25.5W) and DC12V / 3A and DC24V / 2A camera power, enough for high-draw PTZ cameras while you set them up.

Can it control PTZ cameras?

Yes, over RS485, 600–115200bps. Protocols: PELCO-D/P, Samsung, Panasonic and 30+ Protocols.

Can it find cable faults?

Yes. RJ45 TDR checks pair status, length, attenuation, reflectivity, impedance and skew, and finds the distance to an open or short, up to 180m.

Can it test cameras on fiber?

Yes. The gigabit SFP slot takes a standard fiber module, so cameras on fiber links are tested without a media converter.

Which menu languages does it support?

English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more.

How much is shipping and how long does delivery take?

Shipping is free to the US and most of Europe. The shipping cost and estimated delivery date for your country are shown above Add to Cart and again at checkout, and every order ships with a tracking number sent by email.

Will I have to pay import duties?

Where it is offered, choose "Duties & Taxes Paid" at checkout to pay import duties and taxes upfront, with nothing to pay on delivery. Otherwise any duties and taxes are collected by the carrier on delivery. Not offered for your country? Contact us for a duties-paid quote.

What warranty does it come with?

A 1-year repair warranty, and we cover shipping both ways for repairs. If it arrives damaged or develops a fault within 7 days of delivery, we replace it or refund it in full at no cost to you.

Can I return it?

Yes, within 30 days of delivery if it is unused and in its original packaging. There is no restocking fee, and we cover return shipping for damaged or incorrect items.

Which payment methods do you accept?

PayPal and major credit and debit cards at checkout. Business orders can also pay by bank transfer (T/T).

Can I get a company invoice or bulk pricing?

Yes. We provide proforma invoices, company invoices, bank transfer payment and bulk order pricing. Contact us through the Business Purchase box on this page.
