Analog CVBS
IP and analog, side by side.
Dual-window viewing checks IP and CVBS cameras together.
CVBS

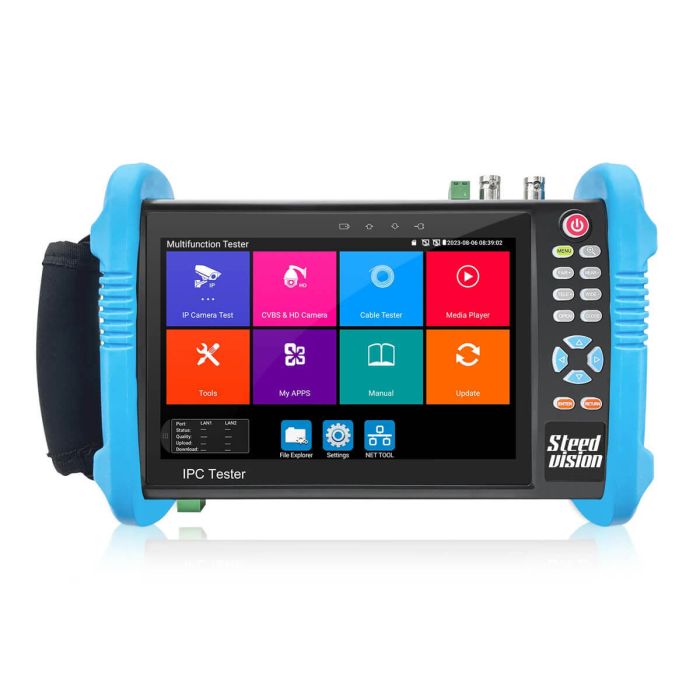

IPC-9800 Pro+ 8K IP & CVBS Camera Tester with 90W PoE++ and SFP
The IP-only model of the IPC-9800 Pro+ series, built for network camera installs.
✓ 8K / 32MP IP cameras and analog CVBS cameras
✓ 90W PoE++ output and Gigabit SFP fiber port
✓ RJ45 TDR cable test up to 180m, RS485 PTZ control, HDMI output
Testing TVI, CVI or AHD cameras too? Choose the IPC-9800ADH Pro+.
$309.99
Regular Price
- Secure payment
- 30-day returns
- Money-back protection
- 1-year warranty
Business Purchase
Buying on behalf of a company?
We can help with:
- Proforma Invoice (PI)
- Bank Transfer (T/T)
- Bulk Order Pricing
- Company Invoice
- Dedicated Sales Support
Buyer Protection
Secure payment
Card payments are processed by Stripe and PayPal. Your card details go straight to them and never reach us.
30-day returns
Return unused items in their original packaging within 30 days of delivery. No restocking fee. We cover return shipping for damaged, faulty or incorrect items; for change-of-mind returns you pay the return shipping. Refunds reach your original payment method within 5-7 business days.
Money-back protection
If it arrives damaged or develops a fault within 7 days of delivery, we send a free replacement or refund you in full. If your order has not shipped within 7 days of payment, cancel it for a full refund. If the carrier confirms it lost, or it has not arrived 15 business days after the latest estimated delivery date, we send a replacement or refund you in full.
1-year repair warranty
Hardware faults under normal use are repaired free for 1 year. We troubleshoot remotely first, then send a prepaid label and cover shipping both ways. Physical damage, water damage and unauthorised repairs are not covered. Your statutory consumer rights are not affected.
SKU: IPC-9800-PRO+
Description
Why installers carry it
Built for the job site.
Pairs well with
Add the WT255 cable tracer.
Find RJ45, telephone and BNC cables in a bundle. Or choose the IPC-9800C Pro+ with it in the box.
View the WT255Built-in tools
Brand tools, no laptop.
Discover cameras with ONVIF and built-in brand tools.
PoE++ output
Power the camera from the tester.
Power cameras with up to 90W PoE++ from the tester.
90W
IP camera test
Ready for 8K cameras.
Preview 8K / 32MP IP cameras over ONVIF and RTSP.
8K
Fiber
Gigabit SFP, built in.
Test gigabit fiber links through the built-in SFP slot.
1G
Cable diagnostics
Find the fault, not the whole run.
Locate RJ45 opens and shorts up to 180m away.
180m
One install, start to finish
Step 1
Trace and test the cable
Check RJ45 continuity and fault distance with TDR before connecting the camera.
Need to trace unlabeled cables? Add the WT255 tracer →
Step 2
Check and supply power
Power the camera directly with 90W PoE++ or DC output.
Need to measure voltage? Compare models →
Step 3
Bring up the camera
Preview 8K IP or CVBS cameras before mounting.
Step 4
Check the link
Check the connection over gigabit RJ45 or SFP at the installation point.
Need to test fiber links? Compare models →
Step 5
Aim the PTZ
Use RS485 control to set the camera angle and check PTZ movement.
Step 6
Confirm at the recorder
Connect HDMI output to a large display for a final camera preview.
IPC-9800 Pro+ Security Camera Tester
IP and CVBS Camera Testing, Power and Cable Checks.
For IP camera installation and CVBS service, with camera power, network checks and HDMI output in one 7-inch tester.
Up to 8K / 32MP IP
CVBS analog
90W PoE++
Gigabit SFP
Camera Testing
Cameras the IPC-9800 Pro+ Tests
Check the picture and camera settings at the installation point before handing the system over.
01IP cameras up to 8K
Preview IP cameras up to 8K / 32MP over ONVIF and RTSP. Use the built-in Hikvision and Dahua tools, discover IP addresses and install a client APK for other brands.
02Analog CVBS
Connect a CVBS camera to the BNC input and check its picture at the installation point. The BNC loop output and PAL / NTSC color bars help check the analog display path.
For TVI, CVI or AHD cameras, choose the IPC-9800ADH Pro+.
Power and Network
Power the Camera and Check the Link
Supply camera power locally, then check whether the fault is in the camera, power source or network link.
01Up to 90W PoE++
55V PoE++ up to 90W (IEEE 802.3af/at/bt), standard 48V PoE up to 25.5W, DC12V 3A, DC24V 2A and USB 5V 2A outputs, with real-time voltage and power display.
02Gigabit RJ45 and SFP
Dual gigabit RJ45 ports (10/100/1000Mbps), a gigabit SFP slot for a compatible fiber module and 2.4GHz Wi-Fi cover copper, fiber and wireless connections.
03Network tools
Use IP discovery, ping, trace route, DHCP server, port flashing and link monitor to find the camera and check the path to the recorder.
Cable Checks
Find the Cable Fault Before Replacing the Camera
01RJ45 TDR up to 180m
Check pair status and cable length, and find the distance to an open or short before deciding whether to repair the connector or replace the run.
02UTP cable test
View the wire map and connection status of each pair to find miswired or broken connections before replacing the camera.
03Optional cable tracer
For cable tracing, choose the IPC-9800C Pro+ with the WT255 included, or add the WT255 cable tracer separately.
Video Path and PTZ
Check the Display Path and PTZ Control
01HDMI output
Send the test picture to a larger display through HDMI output up to 4K @ 60fps.
02RS-485 PTZ control
Use RS-485 at 600–115200bps with PELCO-D/P and more than 30 protocols to check pan, tilt, zoom, camera address and baud rate.
03Record and report
Save snapshots and video recordings, then review them on the tester to document the picture and camera settings at handover.
Compare models
| Feature |
Viewing this item
 $309.99 9800 Pro+ |
 $349.99 ADH Pro+ |
 $374.99 ADHS Pro+ |
 $419.99 CMADHS Pro+ |
 $599.99 MOVTADHS Pro+ |
|---|---|---|---|---|---|
| 8K / 32MP IP camera test | Up to 8K / 32MP | Up to 8K / 32MP | Up to 8K / 32MP | Up to 8K / 32MP | Up to 8K / 32MP |
| Analog CVBS camera test | 1 Channel BNC Input | 1 Channel BNC Input | 1 Channel BNC Input | 1 Channel BNC Input | 1 Channel BNC Input |
| 8MP TVI / CVI / AHD camera test | Not supported | Supported | Supported | Supported | Supported |
| 8MP SDI camera test | Not supported | Not supported | EX-SDI / HD-SDI / 3G-SDI | EX-SDI / HD-SDI / 3G-SDI | EX-SDI / HD-SDI / 3G-SDI |
| Gigabit SFP interface | Supported | Supported | Supported | Supported | Supported |
| Hi-PoE / PoE++ | Supported | Supported | Supported | Supported | Supported |
| HDMI input | Not supported | 4K @ 30FPS | 4K @ 30FPS | 4K @ 30FPS | 4K @ 30FPS |
| HDMI output | Supported | Supported | Supported | Supported | Supported |
| VGA input | Not supported | 1080P @ 60FPS | 1080P @ 60FPS | 1080P @ 60FPS | 1080P @ 60FPS |
| RS485 | Supported | Supported | Supported | Supported | Supported |
| Includes digital cable tracer | Not included | Not included | Not included | Included | Included |
| TDR cable test | 180m | 180m | 180m | 180m | 1200m |
| Optical power meter | Not supported | Not supported | Not supported | Not supported | Supported |
| Digital multimeter | Not supported | Not supported | Not supported | Up to 660V | Up to 660V |
| Visual fault locator | Not supported | Not supported | Not supported | Not supported | Supported |
What's in the box
-
Main unit
-
Tool bag
-
RJ45 cable tester remote
-
BNC video cable
-
AC power adapter
-
DC power output cable
-
Audio test cable
-
RS-485 control cable
-
Shoulder straps
-
Hand strap
-
Screwdriver
-
User manual
Specifications
Product Details
| Screen Size | 7-inch |
|---|
Technical Specifications
| Brand | Steedvision |
|---|---|
| Model | IPC-9800 Pro+ |
| Operating System | Android 11 |
| CPU | 4-Core 2.0GHz |
| Memory | 2GB RAM / 32GB eMMC |
| Display | 7-inch IPS Touchscreen |
| Resolution | 1280 × 800 |
| Battery | 11.1V Lithium-ion Battery Pack, 5200mAh, 57.72Wh |
| Power Supply | DC15V Input |
IP Camera Testing
| IP Camera Test | Up to 8K / 32MP |
|---|---|
| ONVIF | Supported |
| RTSP Playback | Supported |
| Rapid Video | Supported |
| Hikvision Tool | Supported |
| Dahua Tool | Supported |
| Dual Window Test | IP & CVBS Simultaneous Testing |
| Client APK Installation | Supported |
Analog & Coaxial HD Testing
| CVBS Input | 1 Channel BNC Input |
|---|---|
| CVBS Output | 1 Channel BNC Looped Output |
| PTZ Control | RS485, 600–115200bps |
Video Input & Output
| HDMI Output | 4K @ 60FPS |
|---|---|
| Analog Video Output | PAL / NTSC Color Bar Generator |
Power Output
| Standard PoE Output | DC48V, Max 25.5W |
|---|---|
| PoE++ Output | 55V, Max 90W, IEEE 802.3af/at/bt |
| 12V Camera Power Output | DC12V / 3A |
| 24V Camera Power Output | DC24V / 2A |
| USB Power Output | DC5V / 2A |
Cable Testing
| UTP Cable Analysis | Connection Status Display |
|---|---|
| RJ45 TDR Analysis | Pair Status / Length / Attenuation / Reflectivity / Impedance / Skew |
| RJ45 TDR Range | Up to 180m |
Network Functions
| Ethernet Port | Dual Gigabit RJ45 Ports |
|---|---|
| Ethernet Speed | 10/100/1000Mbps Adaptive |
| SFP Port | 1× Gigabit SFP Slot (Fiber Module Supported) |
| Wi-Fi Module | Built-in 2.4GHz Wi-Fi |
| Wi-Fi Speed | 150Mbps |
| Ping Utility | Supported |
| Trace Route | Supported |
| DHCP Server | Supported |
| Port Flashing | Supported |
| Link Monitor | Supported |
Audio & Data Functions
| Audio Input | 1 Channel |
|---|---|
| Audio Monitoring | Supported |
| Data Monitor | Hexadecimal Data Capture & Analysis |
| Screen Snapshot | Supported |
| Video Recording | Supported |
| Digital Zoom | 4× |
| Playback | Supported |
| Power Monitoring | Real-Time Voltage & Power Display |
| Screen Mirroring | Android Phone / PC Display Supported |
Languages
| Supported Languages | English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more |
|---|
Working Environment
| Working Temperature | -10°C to +50°C |
|---|---|
| Working Humidity | 30%–90% |
Dimensions & Weight
| Package Dimensions | 320x290x100mm(12.6x11.4x3.94inch) |
|---|---|
| Package Weight | 2050g(4.52lbs) |
| Tester Dimensions | 240x135x35mm(9.4x5.3x1.4inch) |
| Tester Weight | 1050g(2.31lbs) |
FAQ
Which cameras can the IPC-9800 Pro+ test?
IP cameras up to 8K / 32MP over ONVIF and RTSP and analog CVBS cameras (PAL / NTSC).
Does it work with Hikvision and Dahua cameras?
Yes. Besides standard ONVIF and RTSP, it has built-in Hikvision and Dahua test tools, so cameras from both brands can be found and checked on site without a laptop.
Can it power a PTZ camera without a switch or injector?
Yes. It supplies PoE++ (55V, max 90W, IEEE 802.3af/at/bt), standard PoE (DC48V, max 25.5W) and DC12V / 3A and DC24V / 2A camera power, enough for high-draw PTZ cameras while you set them up.
Can it control PTZ cameras?
Yes, over RS485, 600–115200bps.
Can it find cable faults?
Yes. RJ45 TDR checks pair status, length, attenuation, reflectivity, impedance and skew, and finds the distance to an open or short, up to 180m.
Can it test cameras on fiber?
Yes. The gigabit SFP slot takes a standard fiber module, so cameras on fiber links are tested without a media converter.
Which menu languages does it support?
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more.
How much is shipping and how long does delivery take?
Shipping is free to the US and most of Europe. The shipping cost and estimated delivery date for your country are shown above Add to Cart and again at checkout, and every order ships with a tracking number sent by email.
Will I have to pay import duties?
Where it is offered, choose "Duties & Taxes Paid" at checkout to pay import duties and taxes upfront, with nothing to pay on delivery. Otherwise any duties and taxes are collected by the carrier on delivery. Not offered for your country? Contact us for a duties-paid quote.
What warranty does it come with?
A 1-year repair warranty, and we cover shipping both ways for repairs. If it arrives damaged or develops a fault within 7 days of delivery, we replace it or refund it in full at no cost to you.
Can I return it?
Yes, within 30 days of delivery if it is unused and in its original packaging. There is no restocking fee, and we cover return shipping for damaged or incorrect items.
Which payment methods do you accept?
PayPal and major credit and debit cards at checkout. Business orders can also pay by bank transfer (T/T).
Can I get a company invoice or bulk pricing?
Yes. We provide proforma invoices, company invoices, bank transfer payment and bulk order pricing. Contact us through the Business Purchase box on this page.
