Coaxial HD
TVI, CVI and AHD, up to 8MP.
Test 8MP TVI, CVI and AHD cameras with UTC control.
8MP

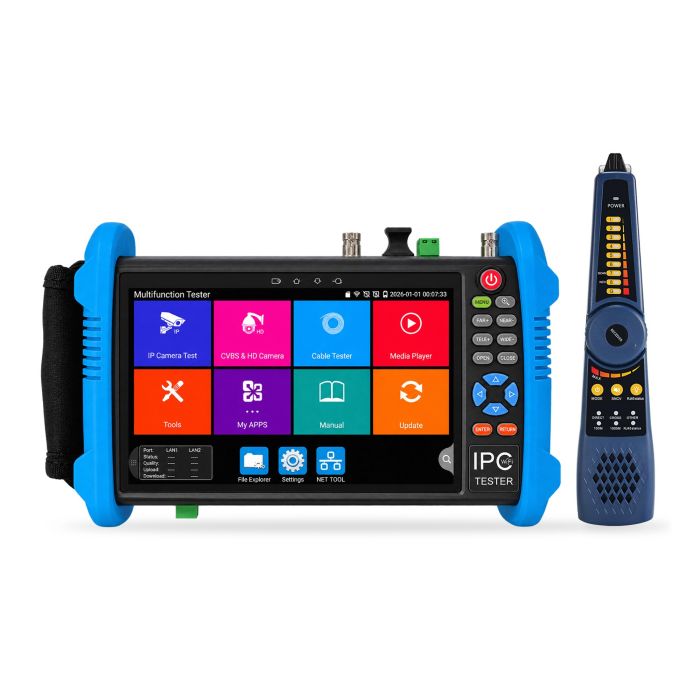

IPC-9800CADH Pro+ 8K IP & Coax Camera Tester with Cable Tracer, 90W PoE++ and SFP
7-inch 8K IP and 8MP TVI / CVI / AHD camera tester with included cable tracer and AC voltage detector, 90W PoE++, Gigabit SFP port, HDMI in/out and VGA input.
Save $25.01 (6%)
Regular Price
$385.00
$359.99
Regular Price
- Secure payment
- 30-day returns
- Money-back protection
- 1-year warranty
Business Purchase
Buying on behalf of a company?
We can help with:
- Proforma Invoice (PI)
- Bank Transfer (T/T)
- Bulk Order Pricing
- Company Invoice
- Dedicated Sales Support
Buyer Protection
Secure payment
Card payments are processed by Stripe and PayPal. Your card details go straight to them and never reach us.
30-day returns
Return unused items in their original packaging within 30 days of delivery. No restocking fee. We cover return shipping for damaged, faulty or incorrect items; for change-of-mind returns you pay the return shipping. Refunds reach your original payment method within 5-7 business days.
Money-back protection
If it arrives damaged or develops a fault within 7 days of delivery, we send a free replacement or refund you in full. If your order has not shipped within 7 days of payment, cancel it for a full refund. If the carrier confirms it lost, or it has not arrived 15 business days after the latest estimated delivery date, we send a replacement or refund you in full.
1-year repair warranty
Hardware faults under normal use are repaired free for 1 year. We troubleshoot remotely first, then send a prepaid label and cover shipping both ways. Physical damage, water damage and unauthorised repairs are not covered. Your statutory consumer rights are not affected.
SKU: IPC-9800CADH-PRO+
Description
Why installers carry it
Built for the job site.
Video input
Check the recorder as well.
Check recorder video with 4K HDMI and 1080P VGA inputs.
HDMI
Cable tracer included
Find the right cable in the bundle.
Trace BNC, RJ45 and telephone cables with the included wire finder.
Built-in tools
Brand tools, no laptop.
Discover cameras with ONVIF and built-in brand tools.
PoE++ output
Power the camera from the tester.
Power cameras with up to 90W PoE++ from the tester.
90W
IP camera test
Ready for 8K cameras.
Preview 8K / 32MP IP cameras over ONVIF and RTSP.
8K
Fiber
Gigabit SFP, built in.
Test gigabit fiber links through the built-in SFP slot.
1G
Cable diagnostics
Find the fault, not the whole run.
Locate RJ45 opens and shorts up to 180m away.
180m
One install, start to finish
Step 1
Trace and test the cable
Find unlabeled cables, then check RJ45 continuity and fault distance with TDR.
Step 2
Check and supply power
Power the camera directly with 90W PoE++ or DC output.
Need to measure voltage? Compare models →
Step 3
Bring up the camera
Preview 8K IP, CVBS or 8MP TVI/CVI/AHD cameras before mounting.
Step 4
Check the link
Check the connection over gigabit RJ45 or SFP at the installation point.
Need to test fiber links? Compare models →
Step 5
Aim the PTZ
Use RS485 control to set the camera angle and check PTZ movement.
Step 6
Confirm at the recorder
View the recorder output through HDMI or VGA input before signing off.
IPC-9800CADH Pro+ Security Camera Tester
IP and Coaxial HD Camera Testing, with a Cable Tracer Included.
Everything in the IPC-9800ADH Pro+, plus a wire finder to trace unlabelled BNC, RJ45 and telephone cables on mixed IP and coaxial sites.
Up to 8K / 32MP IP
8MP TVI / CVI / AHD
Cable Tracer Included
HDMI & VGA Input
90W PoE++
Gigabit SFP
Camera Testing
Cameras the IPC-9800CADH Pro+ Tests
Connect the camera at the installation point and confirm the picture, settings and PTZ before you leave the ladder.
01IP cameras up to 8K
Preview IP cameras up to 8K / 32MP over ONVIF and RTSP, run the built-in Hikvision and Dahua tools, find IP conflicts, and install a client APK for other brands.
02Analog CVBS
One BNC input for CVBS cameras, a BNC loop output, a PAL / NTSC color bar generator for checking monitors, and dual-window IP and CVBS testing.
038MP TVI / CVI / AHD
TVI, CVI and AHD cameras up to 8MP (3840 × 2160P) with NTSC / PAL auto detection, UTC and OSD menu control, TVI 5.0 coaxial audio, and PELCO-D/P plus 30+ PTZ protocols.
SDI cameras are not supported on the IPC-9800CADH Pro+. For SDI, see the comparison below.
Power and Network
Power the Camera and Check the Link
Many "dead camera" calls are a power budget or network problem. The IPC-9800CADH Pro+ supplies the camera itself and checks the link it sits on.
01Up to 90W PoE++
55V PoE++ up to 90W (IEEE 802.3af/at/bt) for high-draw PTZ cameras, standard 48V PoE up to 25.5W, DC12V 3A, DC24V 2A and USB 5V 2A outputs, with real-time voltage and power display.
02Gigabit RJ45 and SFP
Dual gigabit RJ45 ports (10/100/1000Mbps) and a gigabit SFP slot for a standard fiber module, plus 2.4GHz Wi-Fi.
03Network tools
IP discovery, ping, trace route, DHCP server, port flashing and link monitor, so you can find the camera and prove the path to the recorder.
Cable Checks
Find the Cable Fault Before Replacing the Camera
01RJ45 TDR up to 180m
Checks pair status, length, attenuation, reflectivity, impedance and skew, and finds the distance to an open or short.
02UTP cable test
Shows the connection status of each pair, so a miswired or broken connector is found before the camera is replaced.
03Cable tracer included
The wire finder in the box traces BNC, RJ45 and telephone cables, so unlabelled runs are identified before you test the far end. Its AC voltage detector (AC12V–1000V, CAT III 1000V / CAT IV 600V) warns of live wiring first.
Video Path and PTZ
Check the Display Path and PTZ Control
01HDMI and VGA
HDMI output up to 4K @ 60FPS sends the test picture to a larger monitor; HDMI input up to 4K @ 30FPS and VGA input at 1080P @ 60FPS show what the NVR or DVR is outputting.
02RS-485 PTZ control
RS-485 at 600–115200bps to pan, tilt and zoom the camera and confirm its address and baud rate.
03Record and report
Audio input and monitoring, hexadecimal data capture, snapshots, video recording and playback, 4× digital zoom, and screen mirroring to a phone or PC.
What's in the box
-
Main unit
-
Tool bag
-
Network test cable
Network test cable
-
Audio test cable
-
RS-485 control cable
-
Shoulder straps
-
BNC video cable
-
AC power adapter
-
Hand strap
-
DC power output cable
-
User manual
-
WT255 cable tracer
Specifications
Product Details
| Screen Size | 7-inch |
|---|
Technical Specifications
| Brand | Steedvision |
|---|---|
| Model | IPC-9800CADH Pro+ |
| Operating System | Android 11 |
| CPU | 4-Core 2.0GHz |
| Memory | 2GB RAM / 32GB eMMC |
| Display | 7-inch IPS Touchscreen |
| Resolution | 1280 × 800 |
| Battery | 11.1V Lithium-ion Battery Pack, 5200mAh, 57.72Wh |
| Charging Time | 3–4 Hours |
| Power Supply | DC15V Input |
IP Camera Testing
| IP Camera Test | Up to 8K / 32MP |
|---|---|
| ONVIF | Supported |
| RTSP Playback | Supported |
| Rapid Video | Supported |
| Hikvision Tool | Supported |
| Dahua Tool | Supported |
| Dual Window Test | IP & CVBS Simultaneous Testing |
| Client APK Installation | Supported |
Analog & Coaxial HD Testing
| CVBS Input | 1 Channel BNC Input |
|---|---|
| CVBS Output | 1 Channel BNC Looped Output |
| Video Standard | NTSC / PAL Auto Adaptive |
| PTZ Control | RS485, 600–115200bps |
| PTZ Protocols | PELCO-D/P, Samsung, Panasonic and 30+ Protocols |
| TVI Support | 8MP 3840 × 2160P @ 15FPS |
| CVI Support | 8MP 3840 × 2160P @ 12.5/15FPS |
| AHD Support | 8MP 3840 × 2160P @ 15FPS |
| UTC Control | Supported |
| OSD Menu Control | Supported |
| Coaxial Audio | Supported (TVI 5.0 only) |
Video Input & Output
| VGA Input | 1080P @ 60FPS |
|---|---|
| HDMI Input | 4K @ 30FPS |
| HDMI Output | 4K @ 60FPS |
| Analog Video Output | PAL / NTSC Color Bar Generator |
Power Output
| Standard PoE Output | DC48V, Max 25.5W |
|---|---|
| PoE++ Output | 55V, Max 90W, IEEE 802.3af/at/bt |
| 12V Camera Power Output | DC12V / 3A |
| 24V Camera Power Output | DC24V / 2A |
| USB Power Output | DC5V / 2A |
Cable Testing
| Wire Tracer | BNC / RJ45 / Telephone Cable Detection |
|---|---|
| Voltage Detector | AC12V–1000V |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| UTP Cable Analysis | Connection Status Display |
| RJ45 TDR Range | Up to 180m |
Network Functions
| Ethernet Port | Dual Gigabit RJ45 Ports |
|---|---|
| Ethernet Speed | 10/100/1000Mbps Adaptive |
| SFP Port | 1× Gigabit SFP Slot (Fiber Module Supported) |
| Wi-Fi Module | Built-in 2.4GHz Wi-Fi |
| Wi-Fi Speed | 150Mbps |
| Ping Utility | Supported |
| Trace Route | Supported |
| DHCP Server | Supported |
| Port Flashing | Supported |
| Link Monitor | Supported |
Audio & Data Functions
| Audio Input | 1 Channel |
|---|---|
| Audio Monitoring | Supported |
| Data Monitor | Hexadecimal Data Capture & Analysis |
| Screen Snapshot | Supported |
| Video Recording | Supported |
| Digital Zoom | 4× |
| Playback | Supported |
| Power Monitoring | Real-Time Voltage & Power Display |
| Screen Mirroring | Android Phone / PC Display Supported |
Languages
| Supported Languages | English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more |
|---|
Working Environment
| Working Temperature | -10°C to +50°C |
|---|---|
| Working Humidity | 30%–90% |
Dimensions & Weight
| Package Dimensions | 320x290x100mm(12.6x11.4x3.94) |
|---|---|
| Package Weight | 2240g(4.94lbs) |
| Tester Dimensions | 240x135x35mm(9.4x5.3x1.4inch) |
| Tester Weight | 1050g(2.31lbs) |
FAQ
Which cameras can the IPC-9800CADH Pro+ test?
IP cameras up to 8K / 32MP over ONVIF and RTSP, TVI / CVI / AHD coaxial HD cameras up to 8MP and analog CVBS cameras (PAL / NTSC).
Does it work with Hikvision and Dahua cameras?
Yes. Besides standard ONVIF and RTSP, it has built-in Hikvision and Dahua test tools, so cameras from both brands can be found and checked on site without a laptop.
Can it power a PTZ camera without a switch or injector?
Yes. It supplies PoE++ (55V, max 90W, IEEE 802.3af/at/bt), standard PoE (DC48V, max 25.5W) and DC12V / 3A and DC24V / 2A camera power, enough for high-draw PTZ cameras while you set them up.
Can it control PTZ cameras?
Yes, over RS485, 600–115200bps. Protocols: PELCO-D/P, Samsung, Panasonic and 30+ Protocols.
Can it find cable faults?
Yes. RJ45 TDR checks network cable length, and finds the distance to an open or short, up to 180m. It also has a built-in wire tracer (BNC / RJ45 / Telephone Cable Detection).
Can it test cameras on fiber?
Yes. The gigabit SFP slot takes a standard fiber module, so cameras on fiber links are tested without a media converter.
Which menu languages does it support?
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more.
How much is shipping and how long does delivery take?
Shipping is free to the US and most of Europe. The shipping cost and estimated delivery date for your country are shown above Add to Cart and again at checkout, and every order ships with a tracking number sent by email.
Will I have to pay import duties?
Where it is offered, choose "Duties & Taxes Paid" at checkout to pay import duties and taxes upfront, with nothing to pay on delivery. Otherwise any duties and taxes are collected by the carrier on delivery. Not offered for your country? Contact us for a duties-paid quote.
What warranty does it come with?
A 1-year repair warranty, and we cover shipping both ways for repairs. If it arrives damaged or develops a fault within 7 days of delivery, we replace it or refund it in full at no cost to you.
Can I return it?
Yes, within 30 days of delivery if it is unused and in its original packaging. There is no restocking fee, and we cover return shipping for damaged or incorrect items.
Which payment methods do you accept?
PayPal and major credit and debit cards at checkout. Business orders can also pay by bank transfer (T/T).
Can I get a company invoice or bulk pricing?
Yes. We provide proforma invoices, company invoices, bank transfer payment and bulk order pricing. Contact us through the Business Purchase box on this page.
