Analog CVBS
IP and analog, side by side.
Dual-window viewing checks IP and CVBS cameras together.
CVBS
IPC-9800C Pro+ 8K IP Camera Tester with Cable Tracer, 90W PoE++ and SFP
7-inch 8K IP and CVBS camera tester with included cable tracer and AC voltage detector, 90W PoE++, Gigabit SFP port, dual Gigabit RJ45 and HDMI output.
$335.00
Regular Price
- Secure payment
- 30-day returns
- Money-back protection
- 1-year warranty
Business Purchase
Buying on behalf of a company?
We can help with:
- Proforma Invoice (PI)
- Bank Transfer (T/T)
- Bulk Order Pricing
- Company Invoice
- Dedicated Sales Support
Buyer Protection
Secure payment
Card payments are processed by Stripe and PayPal. Your card details go straight to them and never reach us.
30-day returns
Return unused items in their original packaging within 30 days of delivery. No restocking fee. We cover return shipping for damaged, faulty or incorrect items; for change-of-mind returns you pay the return shipping. Refunds reach your original payment method within 5-7 business days.
Money-back protection
If it arrives damaged or develops a fault within 7 days of delivery, we send a free replacement or refund you in full. If your order has not shipped within 7 days of payment, cancel it for a full refund. If the carrier confirms it lost, or it has not arrived 15 business days after the latest estimated delivery date, we send a replacement or refund you in full.
1-year repair warranty
Hardware faults under normal use are repaired free for 1 year. We troubleshoot remotely first, then send a prepaid label and cover shipping both ways. Physical damage, water damage and unauthorised repairs are not covered. Your statutory consumer rights are not affected.
SKU: IPC-9800C-PRO+
Description
Why installers carry it
Built for the job site.
Cable tracer included
Find the right cable in the bundle.
Trace BNC, RJ45 and telephone cables with the included wire finder.
Built-in tools
Brand tools, no laptop.
Discover cameras with ONVIF and built-in brand tools.
PoE++ output
Power the camera from the tester.
Power cameras with up to 90W PoE++ from the tester.
90W
IP camera test
Ready for 8K cameras.
Preview 8K / 32MP IP cameras over ONVIF and RTSP.
8K
Fiber
Gigabit SFP, built in.
Test gigabit fiber links through the built-in SFP slot.
1G
Cable diagnostics
Find the fault, not the whole run.
Locate RJ45 opens and shorts up to 180m away.
180m
One install, start to finish

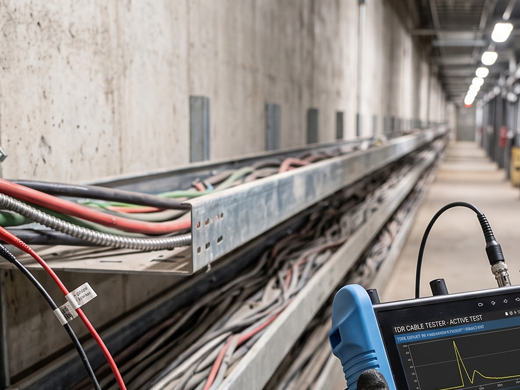

Step 1
Trace and test the cable
Find unlabeled cables, then check RJ45 continuity and fault distance with TDR.
Step 2

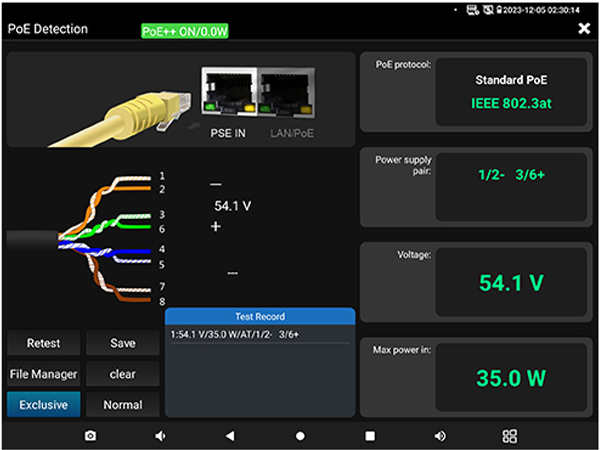

Check and supply power
Power the camera directly with 90W PoE++ or DC output.
Need to measure voltage? Compare models →

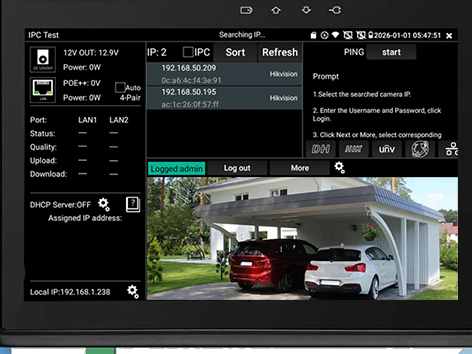

Step 3
Bring up the camera
Preview 8K IP or CVBS cameras before mounting.

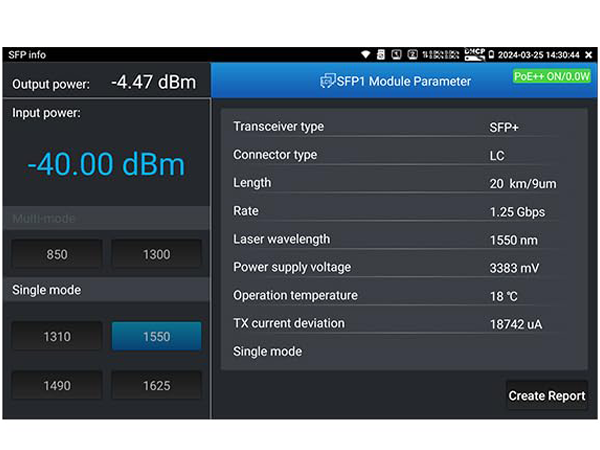

Step 4
Check the link
Check the connection over gigabit RJ45 or SFP at the installation point.
Need to test fiber links? Compare models →
Step 5
Aim the PTZ
Use RS485 control to set the camera angle and check PTZ movement.

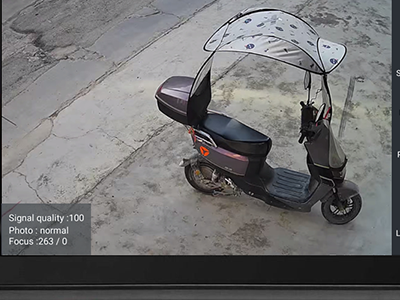

Step 6
Confirm at the recorder
Connect HDMI output to a large display for a final camera preview.

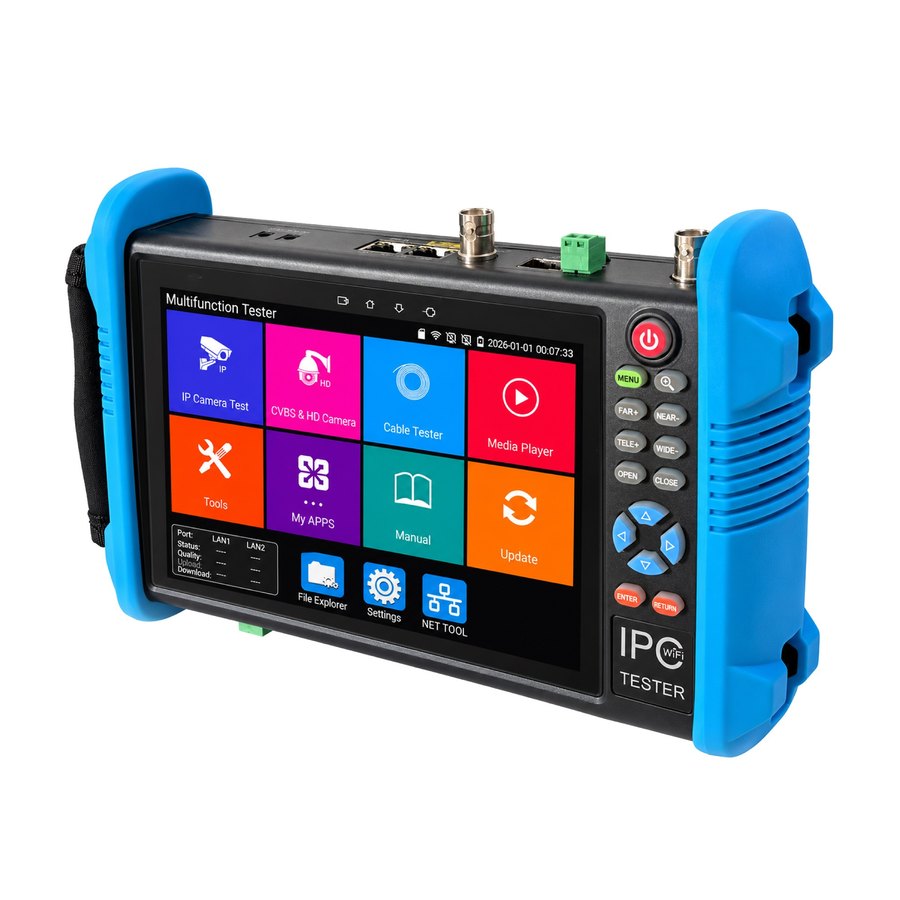

IPC-9800C Pro+ Security Camera Tester
Bring the camera up, power it and prove the cable, from one 7-inch tester.
For installers whose sites are mostly IP cameras, with some older analog CVBS cameras still in service. Every test is two taps from the 1280 × 800 touchscreen. A WT255 cable tracer is included in the box.
Up to 8K / 32MP IP
CVBS analog
90W PoE++
Gigabit SFP
RJ45 TDR 180m
WT255 tracer included
On the Tester
Every Tool, Menu by Menu
These are the real menus of the IPC-9800C Pro+. Nothing to install, and no laptop needed on site.

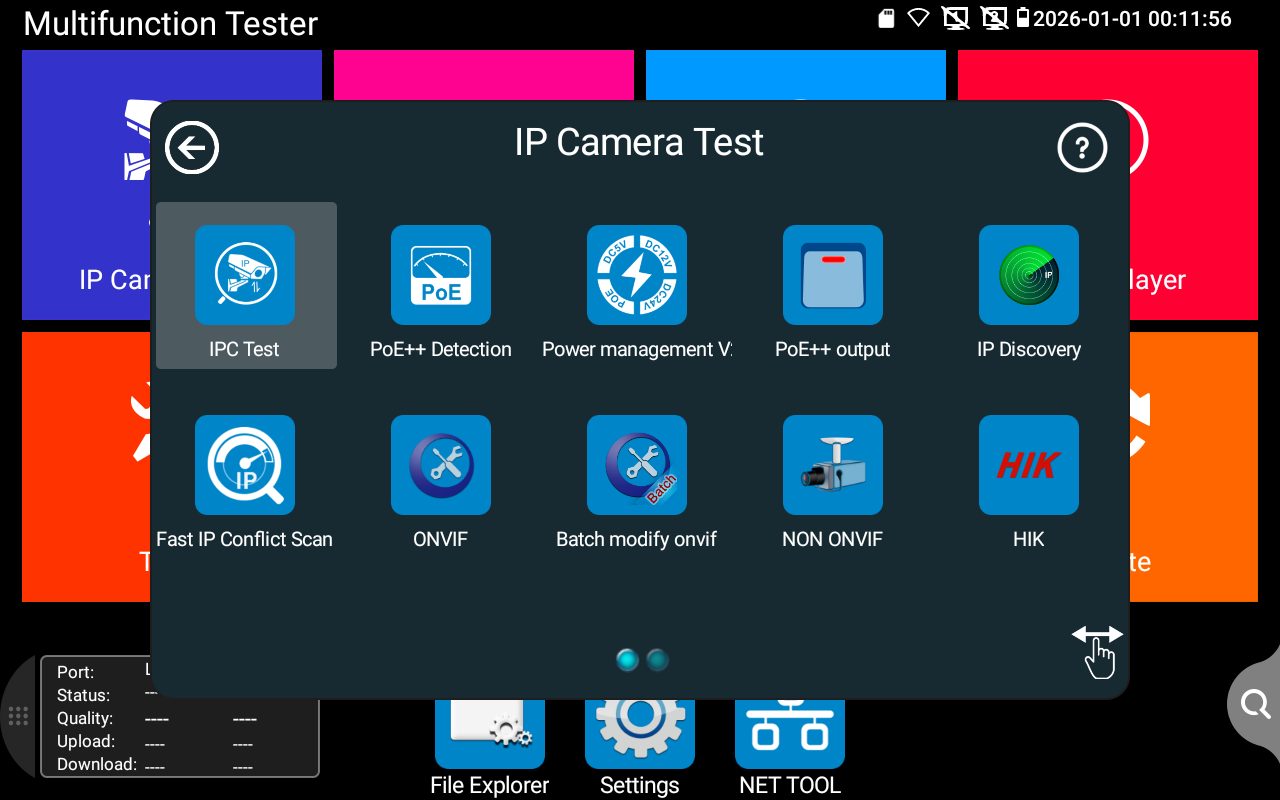

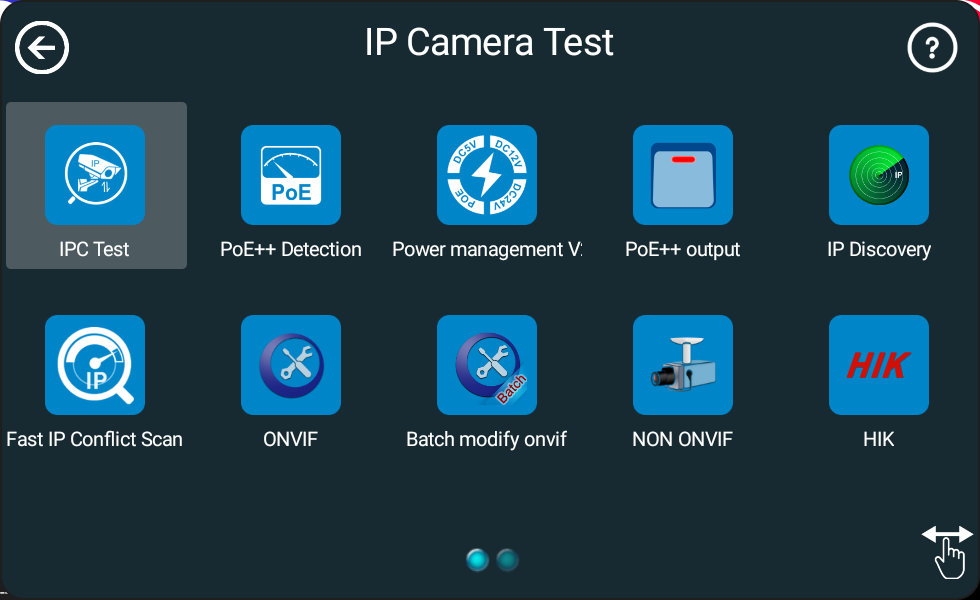

IP Camera Test
Find the camera, log in and see the picture without a laptop.
- IPC Test: Scans several subnets, shows each camera's maker and plays the video with one tap.
- ONVIF: Logs in to ONVIF cameras and plays the main stream up to 8K / 32MP.
- NON ONVIF: Brand protocols and RTSP for cameras that do not answer ONVIF.
- HIK: Activates Hikvision cameras, one at a time or in batches, and changes IP, password and channel name.
- Batch modify ONVIF: Changes the IP settings of several ONVIF cameras at once.
- IP Discovery: Finds the camera's address and moves the tester onto the same subnet.
- Fast IP Conflict Scan: Checks that an address is free before you assign it.
- PoE++ Detection: Placed between a PoE switch and the camera, reads the supply voltage, PoE standard and pair status.
- PoE++ output and Power management: Turns on 90W PoE++ and shows live voltage and watts on every output.

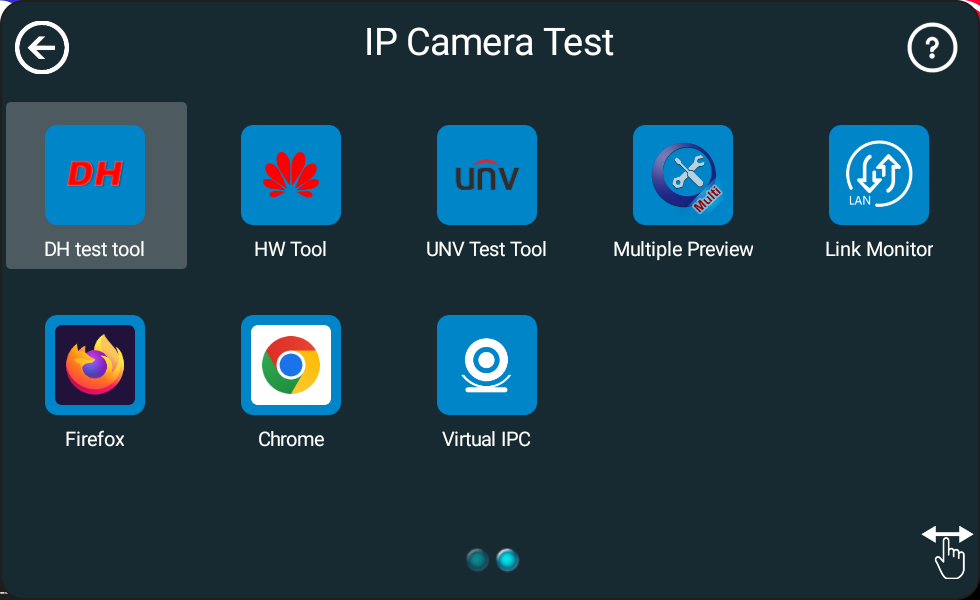

More camera tools
Brand tools, multi-camera view and a browser for the camera's web page.
- DH, HW and UNV tools: Dahua, Huawei and Uniview tools for their own cameras; the Dahua tool also activates cameras in batches.
- Multiple Preview: Shows up to 16 cameras on screen at the same time.
- Link Monitor: Shows port speed and live upload and download traffic.
- Virtual IPC: Makes the tester appear to the recorder as an IP camera.
- Firefox and Chrome: Open the camera's web page to change any setting.

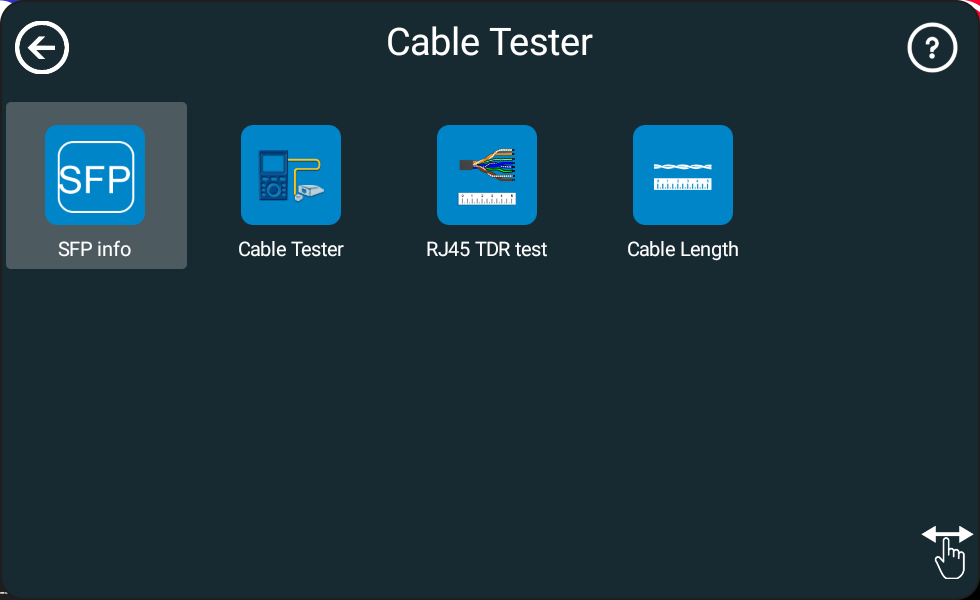

Cable Tester
Prove the cable and the fiber link before you blame the camera.
- Cable Tester: With the RJ45 remote in the box, shows the wire map, the cable type and which end a bad connector is at.
- RJ45 TDR test: Pair status, length, attenuation, impedance and skew, and the distance to a fault, up to 180m.
- Cable Length: Distance to an open end on BNC, RJ45 and telephone cable, up to 3km.
- SFP info: Reads the optical power of the SFP module in the fiber slot.

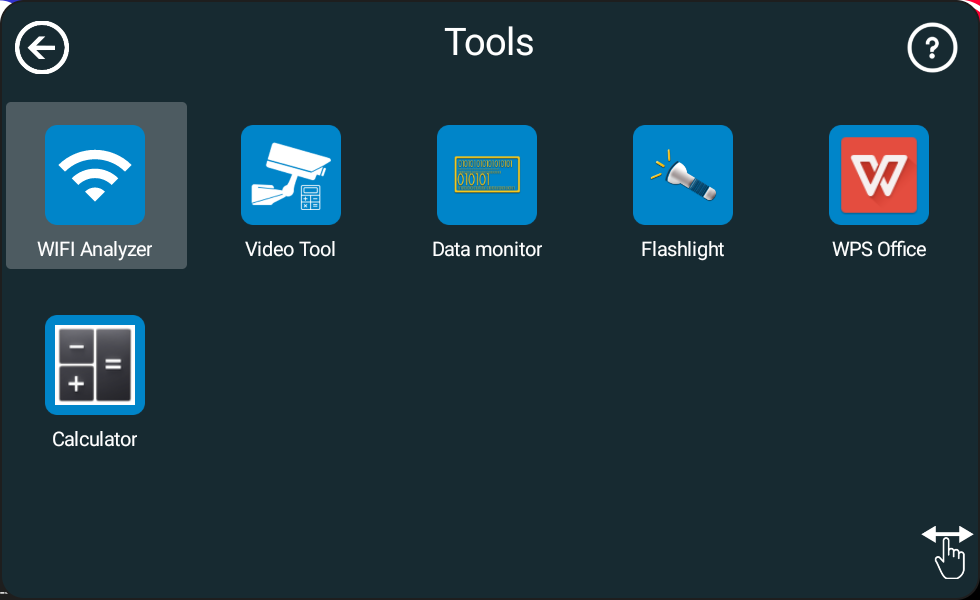

Tools
Everyday helpers for the job site.
- Wi-Fi Analyzer: Signal strength and channel of nearby 2.4GHz networks.
- Data monitor: Captures the RS-485 commands from a keyboard or recorder to identify the PTZ protocol.
- Flashlight, WPS Office and Calculator: Light for dark ceilings, and documents and sums without a phone.

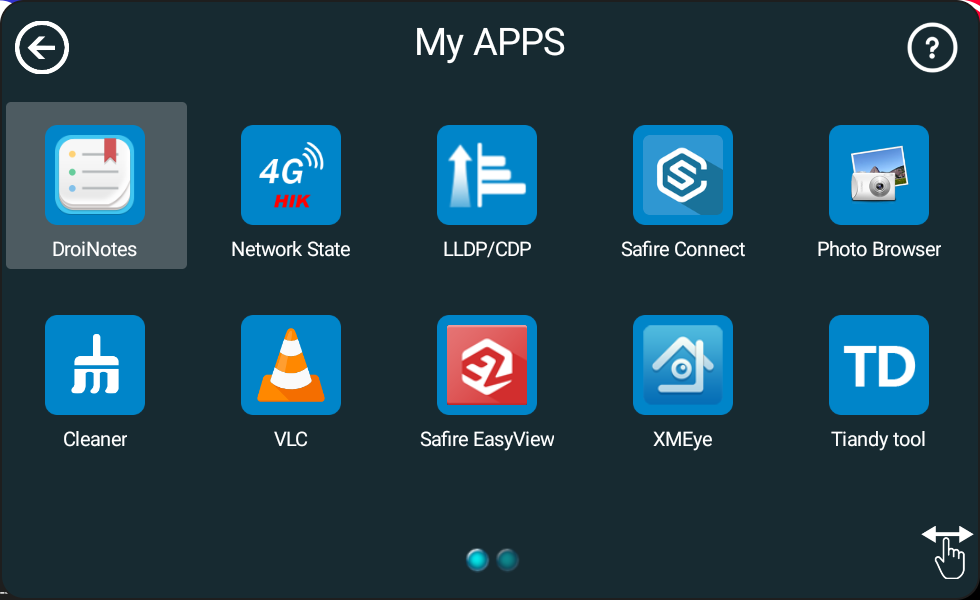

My APPS
Recorder and camera apps already installed.
- XMEye, Tiandy tool, Safire Connect and Safire EasyView: Brand apps for cameras and recorders that use them.
- LLDP/CDP: Shows the switch and port the cable is plugged into.
- VLC and Photo Browser: Play recordings and view snapshots on the tester.
- Notes: Write down IP addresses and test results on site.
What It Tests
Cameras, Power, Network and PTZ
Cameras
IP cameras up to 8K / 32MP over ONVIF, RTSP and brand protocols. One BNC input and one loop output for analog CVBS cameras, with a PAL / NTSC color bar generator. TVI, CVI, AHD and SDI cameras need the IPC-9800CADH Pro+ or IPC-9800CADHS Pro+.
Power
55V PoE++ up to 90W (IEEE 802.3af/at/bt), standard 48V PoE up to 25.5W, DC12V 3A, DC24V 2A and USB 5V 2A, so the camera runs without an injector or adapter.
Network
Dual gigabit RJ45 ports, a gigabit SFP slot for a standard fiber module, and 2.4GHz Wi-Fi. IP scan, ping, trace route, DHCP server, PPPoE, DNS and port flashing are in NET TOOL.
Video and PTZ
HDMI output up to 4K @ 60FPS for a larger monitor, and RS-485 PTZ control at 600–115200bps with more than 30 protocols. Snapshots and recordings save to the TF card.
Cable tracer in the box. Use the included WT255 digital cable tracer to find RJ45, telephone and BNC cables in a bundle.
What's in the box
-

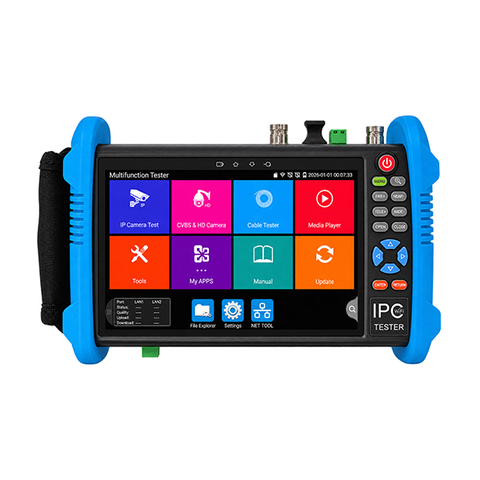

Main unit
-

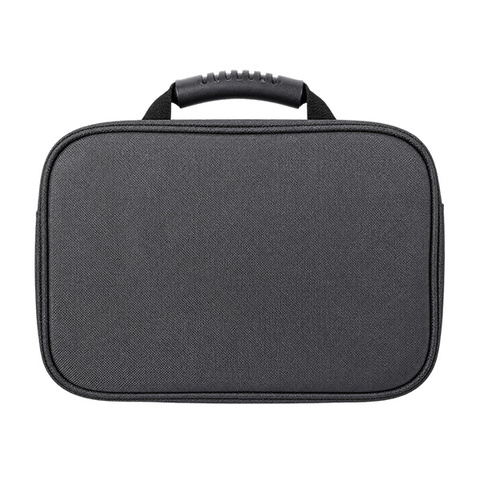

Tool bag
-

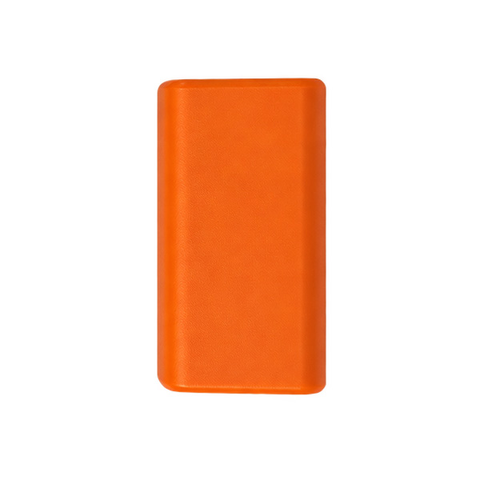

RJ45 cable tester remote
-

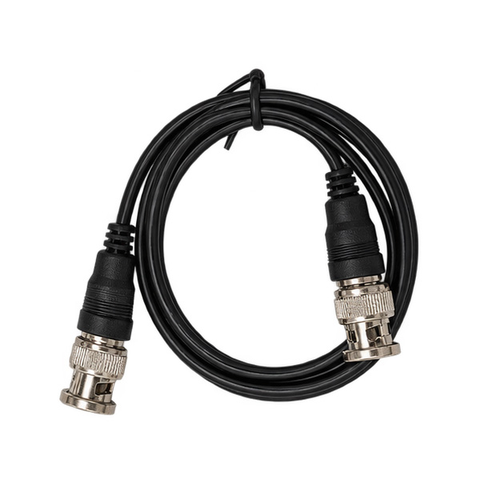

BNC video cable
-

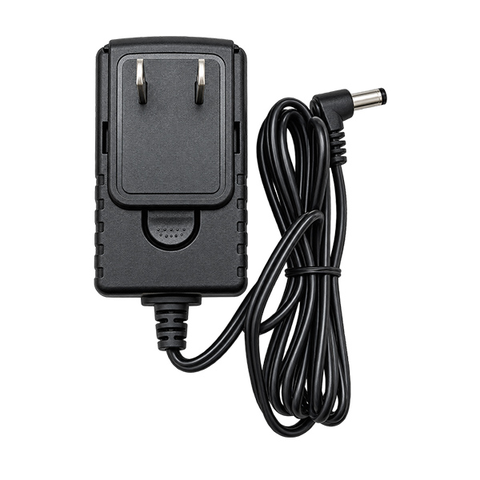

AC power adapter
-

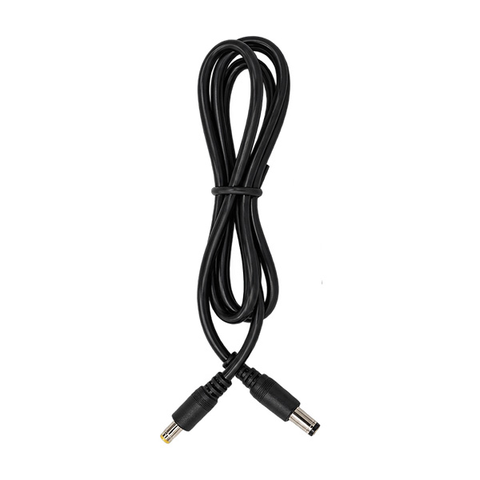

DC power output cable
-

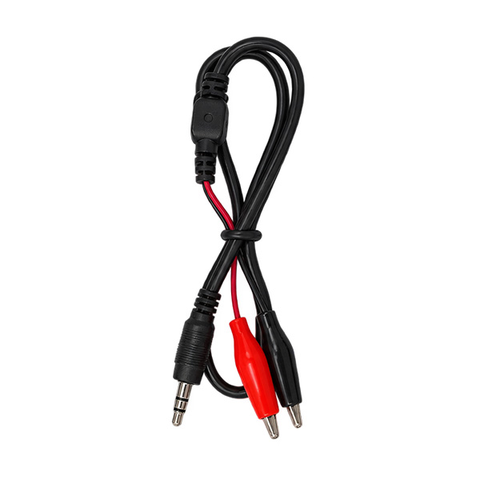

Audio test cable
-

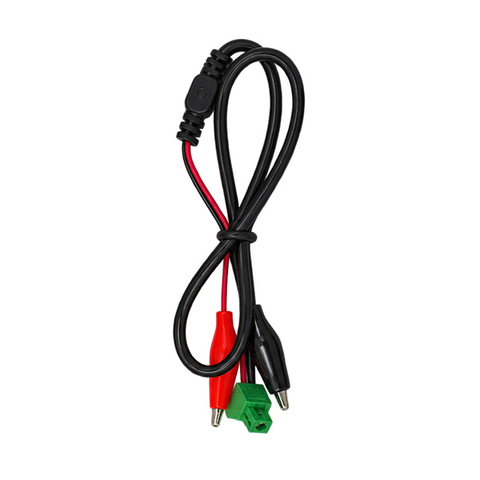

RS-485 control cable
-

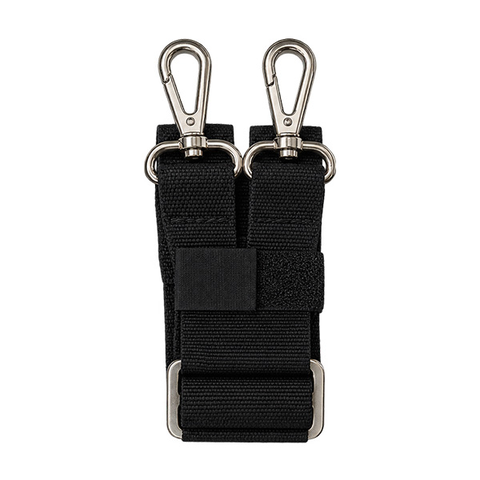

Shoulder straps
-

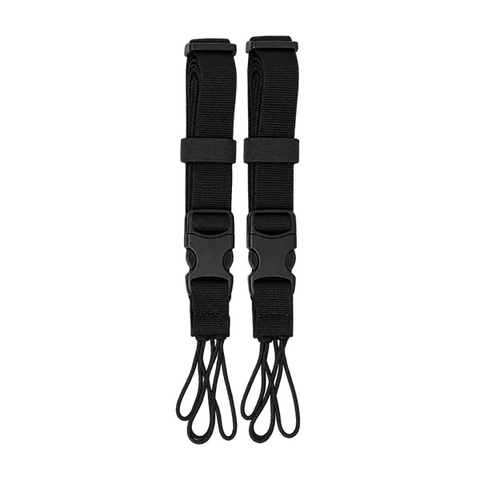

Hand strap
-

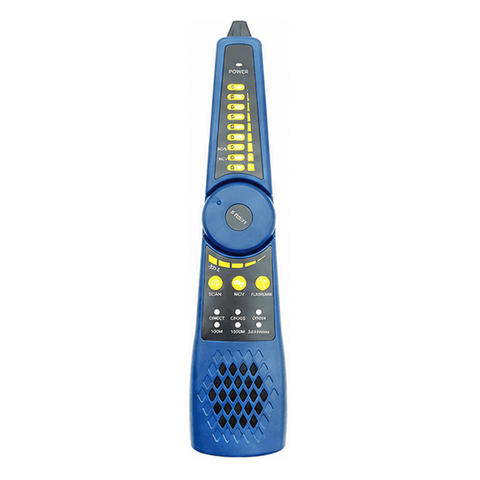

WT255 cable tracer
-

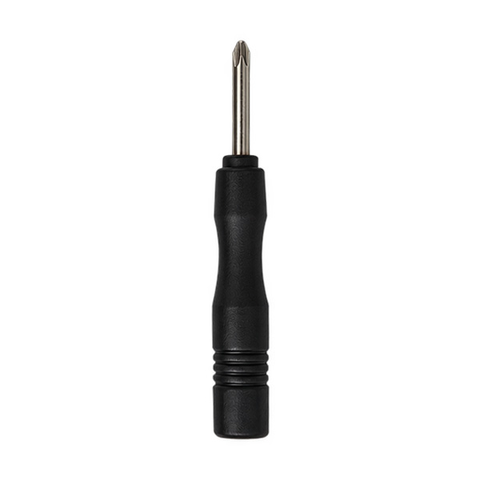

Screwdriver
-
User manual
Specifications
Product Details
| Screen Size | 7-inch |
|---|
Technical Specifications
| Brand | Steedvision |
|---|---|
| Model | IPC-9800C Pro+ |
| Operating System | Android 11 |
| CPU | 4-Core 2.0GHz |
| Memory | 2GB RAM / 32GB eMMC |
| Display | 7-inch IPS Touchscreen |
| Resolution | 1280 × 800 |
| Battery | 11.1V Lithium-ion Battery Pack, 5200mAh, 57.72Wh |
| Charging Time | 3–4 Hours |
| Power Supply | DC15V Input |
IP Camera Testing
| IP Camera Test | Up to 8K / 32MP |
|---|---|
| ONVIF | Supported |
| RTSP Playback | Supported |
| Rapid Video | Supported |
| Hikvision Tool | Supported |
| Dahua Tool | Supported |
| Dual Window Test | IP & CVBS Simultaneous Testing |
| Client APK Installation | Supported |
Analog & Coaxial HD Testing
| CVBS Input | 1 Channel BNC Input |
|---|---|
| CVBS Output | 1 Channel BNC Looped Output |
| Video Standard | NTSC / PAL Auto Adaptive |
| PTZ Control | RS485, 600–115200bps |
| PTZ Protocols | PELCO-D/P, Samsung, Panasonic and 30+ Protocols |
Video Input & Output
| HDMI Output | 4K @ 60FPS |
|---|---|
| Analog Video Output | PAL / NTSC Color Bar Generator |
Power Output
| Standard PoE Output | DC48V, Max 25.5W |
|---|---|
| PoE++ Output | 55V, Max 90W, IEEE 802.3af/at/bt |
| 12V Camera Power Output | DC12V / 3A |
| 24V Camera Power Output | DC24V / 2A |
| USB Power Output | DC5V / 2A |
Cable Testing
| Wire Tracer | BNC / RJ45 / Telephone Cable Detection |
|---|---|
| Voltage Detector | AC12V–1000V |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| UTP Cable Analysis | Connection Status Display |
| RJ45 TDR Range | Up to 180m |
Network Functions
| Ethernet Port | Dual Gigabit RJ45 Ports |
|---|---|
| Ethernet Speed | 10/100/1000Mbps Adaptive |
| SFP Port | 1× Gigabit SFP Slot (Fiber Module Supported) |
| Wi-Fi Module | Built-in 2.4GHz Wi-Fi |
| Wi-Fi Speed | 150Mbps |
| Ping Utility | Supported |
| Trace Route | Supported |
| DHCP Server | Supported |
| Port Flashing | Supported |
| Link Monitor | Supported |
Audio & Data Functions
| Audio Input | 1 Channel |
|---|---|
| Audio Monitoring | Supported |
| Data Monitor | Hexadecimal Data Capture & Analysis |
| Screen Snapshot | Supported |
| Video Recording | Supported |
| Digital Zoom | 4× |
| Playback | Supported |
| Power Monitoring | Real-Time Voltage & Power Display |
| Screen Mirroring | Android Phone / PC Display Supported |
Languages
| Supported Languages | English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more |
|---|
Working Environment
| Working Temperature | -10°C to +50°C |
|---|---|
| Working Humidity | 30%–90% |
Dimensions & Weight
| Package Dimensions | 320x290x100mm(12.6x11.4x3.94) |
|---|---|
| Package Weight | 2200g(4.85lbs) |
| Tester Dimensions | 240x135x35mm(9.4x5.3x1.4inch) |
| Tester Weight | 1050g(2.31lbs) |
FAQ
Which cameras can the IPC-9800C Pro+ test?
IP cameras up to 8K / 32MP over ONVIF and RTSP and analog CVBS cameras (PAL / NTSC).
Does it work with Hikvision and Dahua cameras?
Yes. Besides standard ONVIF and RTSP, it has built-in Hikvision and Dahua test tools, so cameras from both brands can be found and checked on site without a laptop.
Can it power a PTZ camera without a switch or injector?
Yes. It supplies PoE++ (55V, max 90W, IEEE 802.3af/at/bt), standard PoE (DC48V, max 25.5W) and DC12V / 3A and DC24V / 2A camera power, enough for high-draw PTZ cameras while you set them up.
Can it control PTZ cameras?
Yes, over RS485, 600–115200bps. Protocols: PELCO-D/P, Samsung, Panasonic and 30+ Protocols.
Can it find cable faults?
Yes. RJ45 TDR checks network cable length, and finds the distance to an open or short, up to 180m. It also has a built-in wire tracer (BNC / RJ45 / Telephone Cable Detection).
Can it test cameras on fiber?
Yes. The gigabit SFP slot takes a standard fiber module, so cameras on fiber links are tested without a media converter.
Which menu languages does it support?
English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese and more.
How much is shipping and how long does delivery take?
Shipping is free to the US and most of Europe. The shipping cost and estimated delivery date for your country are shown above Add to Cart and again at checkout, and every order ships with a tracking number sent by email.
Will I have to pay import duties?
Where it is offered, choose "Duties & Taxes Paid" at checkout to pay import duties and taxes upfront, with nothing to pay on delivery. Otherwise any duties and taxes are collected by the carrier on delivery. Not offered for your country? Contact us for a duties-paid quote.
What warranty does it come with?
A 1-year repair warranty, and we cover shipping both ways for repairs. If it arrives damaged or develops a fault within 7 days of delivery, we replace it or refund it in full at no cost to you.
Can I return it?
Yes, within 30 days of delivery if it is unused and in its original packaging. There is no restocking fee, and we cover return shipping for damaged or incorrect items.
Which payment methods do you accept?
PayPal and major credit and debit cards at checkout. Business orders can also pay by bank transfer (T/T).
Can I get a company invoice or bulk pricing?
Yes. We provide proforma invoices, company invoices, bank transfer payment and bulk order pricing. Contact us through the Business Purchase box on this page.
