Pocket touchscreen
Check the camera, right where it is.
Check camera pictures on a 4-inch touchscreen.
4″

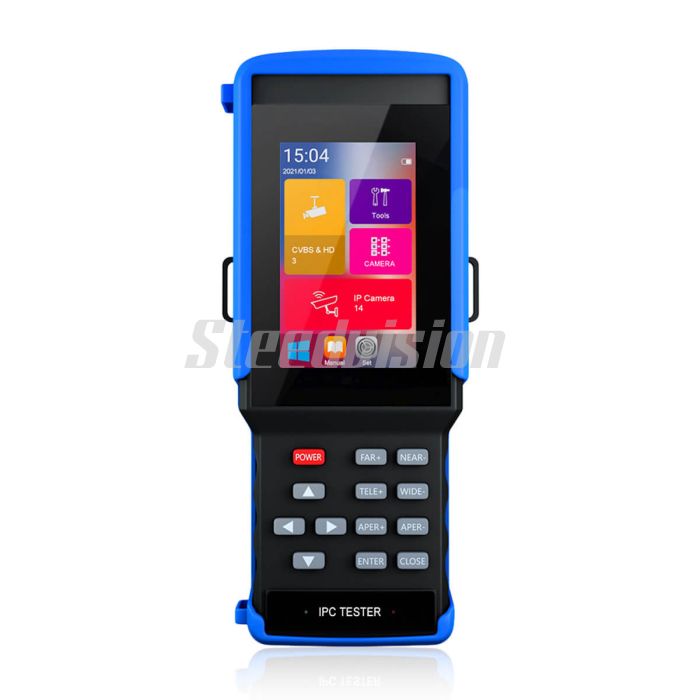

IPC-9310 Plus 4K CCTV Tester with PoE & Wi-Fi
4" IPS Touch Screen CCTV Tester: 4K 12MP IP & 8MP TVI/CVI/AHD + CVBS Testing | HDMI Output | PoE Power Output | Built-in Wi-Fi | Optional Cable Tracer
Save $50.00 (22%)
Regular Price
$229.00
$179.00
Regular Price
- Secure payment
- 30-day returns
- Money-back protection
- 1-year warranty
Business Purchase
Buying on behalf of a company?
We can help with:
- Proforma Invoice (PI)
- Bank Transfer (T/T)
- Bulk Order Pricing
- Company Invoice
- Dedicated Sales Support
Buyer Protection
Secure payment
Card payments are processed by Stripe and PayPal. Your card details go straight to them and never reach us.
30-day returns
Return unused items in their original packaging within 30 days of delivery. No restocking fee. We cover return shipping for damaged, faulty or incorrect items; for change-of-mind returns you pay the return shipping. Refunds reach your original payment method within 5-7 business days.
Money-back protection
If it arrives damaged or develops a fault within 7 days of delivery, we send a free replacement or refund you in full. If your order has not shipped within 7 days of payment, cancel it for a full refund. If the carrier confirms it lost, or it has not arrived 15 business days after the latest estimated delivery date, we send a replacement or refund you in full.
1-year repair warranty
Hardware faults under normal use are repaired free for 1 year. We troubleshoot remotely first, then send a prepaid label and cover shipping both ways. Physical damage, water damage and unauthorised repairs are not covered. Your statutory consumer rights are not affected.
SKU: IPC-9310-PLUS
Description
Why installers carry it
Built for the job site.
Coaxial HD
TVI, CVI and AHD, up to 8MP.
Test TVI, CVI and AHD cameras up to 8MP.
8MP
Analog CVBS
Keep legacy cameras in the picture.
Test analog CVBS cameras with the same tester.
CVBS
IP camera test
Ready for 4K cameras.
Preview IP cameras up to 4K / 12MP.
4K
PoE output
Power the camera from the tester.
Power cameras with up to 25.5W PoE from the tester.
25.5W
Video output
Put the picture on a bigger screen.
Connect an external display through HDMI output.
HDMI
Wireless connection
Join the network over Wi-Fi.
Connect your Steedvision tester to a Wi-Fi network.
Specifications
Product Details
| Screen Size | 4-inch |
|---|
Technical Specifications
| Brand | Steedvision |
|---|---|
| Model | IPC-9310 |
| Operating System | Android 7.0 |
| Display | 4-inch IPS Capacitive Touchscreen |
| Resolution | 800 × 480 HD |
IP Camera Testing
| IP Camera Test | Support up to 4K / 12MP |
|---|---|
| ONVIF | Supported |
| RTSP Playback | Supported |
| Hikvision Tool | Supported |
| Dahua Tool | Supported |
| Dual Window Test | IP & CVBS Simultaneous Testing |
| Client APK Installation | Supported |
Analog & Coaxial HD Testing
| CVBS Input | 1 Channel CVBS Input |
|---|---|
| Video Standard | NTSC / PAL Auto Adaptive |
| PTZ Control | Supported |
| PTZ Protocols | PELCO-D/P, Samsung, Panasonic and 40+ Protocols |
| TVI Support | 8MP Supported |
| CVI Support | 8MP Supported |
| AHD Support | 8MP Supported |
| UTC Control | Supported |
| OSD Menu Control | Supported |
Power Output
| Standard PoE Output | DC48V, Max 25.5W |
|---|---|
| 12V Camera Power Output | DC12V / 3A |
Cable Testing
| UTP Cable Analysis | Connection Sequence & On/Off Status |
|---|---|
| RJ45 TDR Analysis | Pair Status / Length / Attenuation / Quality / Impedance / Delay Skew |
Network Functions
| Ethernet Port | 10/100/1000Mbps Adaptive RJ45 |
|---|---|
| Ethernet Speed | 10/100/1000Mbps Adaptive |
| Wi-Fi Module | Built-in 2.4GHz Wi-Fi |
| Wi-Fi Speed | 150Mbps |
| Ping Utility | Supported |
| DHCP Server | Supported |
| Port Flashing | Supported |
Audio & Data Functions
| Data Monitor | RS485 Hexadecimal Data Send & Receive |
|---|---|
| Screen Snapshot | Supported |
| Video Recording | Supported |
| Playback | Supported |
Languages
| Supported Languages | English, Chinese, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, and more |
|---|
Working Environment
| Working Temperature | -10°C to +50°C |
|---|---|
| Working Humidity | 30%–90% |
Dimensions & Weight
| Tester Dimensions | 230 × 92 × 41mm |
|---|
FAQ
Which cameras can the IPC-9310 Plus test?
IP cameras up to 4K / 12MP over ONVIF and RTSP, TVI / CVI / AHD coaxial HD cameras up to 8MP and analog CVBS cameras (PAL / NTSC).
Does it work with Hikvision and Dahua cameras?
Yes. Besides standard ONVIF and RTSP, it has built-in Hikvision and Dahua test tools, so cameras from both brands can be found and checked on site without a laptop.
Can it power the camera on site?
Yes. It supplies standard PoE (DC48V, max 25.5W) and DC12V / 3A camera power, so the camera can be tested before its own power is in place.
Can it control PTZ cameras?
Yes. Protocols: PELCO-D/P, Samsung, Panasonic and 40+ Protocols.
Which menu languages does it support?
English, Chinese, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, and more.
How much is shipping and how long does delivery take?
Shipping is free to the US and most of Europe. The shipping cost and estimated delivery date for your country are shown above Add to Cart and again at checkout, and every order ships with a tracking number sent by email.
Will I have to pay import duties?
Where it is offered, choose "Duties & Taxes Paid" at checkout to pay import duties and taxes upfront, with nothing to pay on delivery. Otherwise any duties and taxes are collected by the carrier on delivery. Not offered for your country? Contact us for a duties-paid quote.
What warranty does it come with?
A 1-year repair warranty, and we cover shipping both ways for repairs. If it arrives damaged or develops a fault within 7 days of delivery, we replace it or refund it in full at no cost to you.
Can I return it?
Yes, within 30 days of delivery if it is unused and in its original packaging. There is no restocking fee, and we cover return shipping for damaged or incorrect items.
Which payment methods do you accept?
PayPal and major credit and debit cards at checkout. Business orders can also pay by bank transfer (T/T).
Can I get a company invoice or bulk pricing?
Yes. We provide proforma invoices, company invoices, bank transfer payment and bulk order pricing. Contact us through the Business Purchase box on this page.
