Pocket-size 4-inch tester for 8K IP and 8MP TVI / CVI / AHD / CVBS cameras with RS485 PTZ, 25.5W PoE, UTP cable test and Wi-Fi.

$220.00

Shipping Calculating...

Free Shipping

Delivering to

Prefer no fees on delivery? Choose "Duties & Taxes Paid" at checkout.

In stock

Secure checkout 1-year warranty 30-day returns

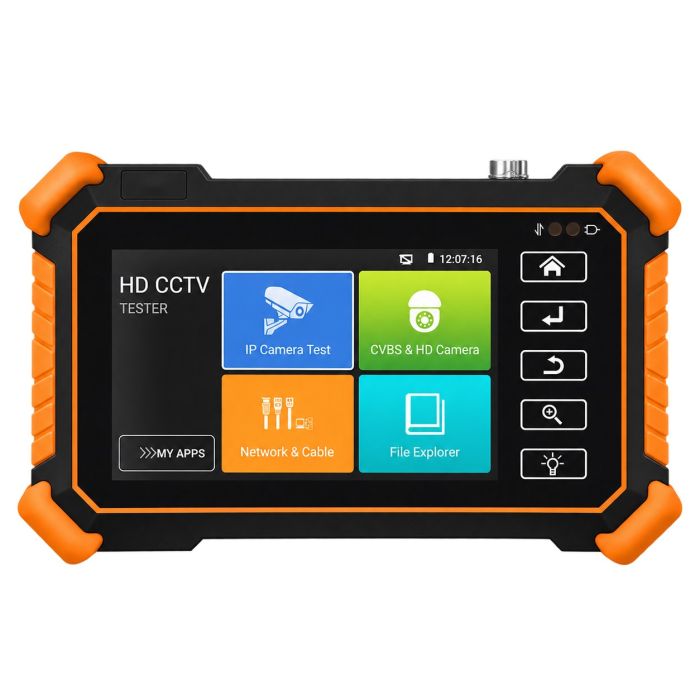

IPC-1910 Plus

The IPC-1910 Plus extends the IPC-1900 Plus to coaxial HD and CVBS cameras, with auto recognition of HD coax camera type and resolution.

IP camera testing up to 8K / 32MP with ONVIF, RTSP playback and Rapid Video reports
Hikvision and Dahua batch activation and IP / password modification
8MP TVI / CVI / AHD and CVBS testing with coaxial PTZ and OSD menu control
RS485 PTZ control with PELCO-D/P and 30+ protocols
DC48V PoE up to 25.5W and DC12V / 3A output with real-time power display
UTP cable test with near / mid / far-end RJ45 plug fault detection
Wi-Fi, ping, trace route, DHCP server, port flashing and link monitor

Brand	STEEDVISION
Model	IPC-1910 Plus
Operating System	Android 9.1
Display	4-inch IPS Touchscreen
Resolution	960 × 640
Battery	Built-in 7.4V Lithium-ion Battery, 2600mAh, 19.24Wh
Working Time	Up to 9 Hours
Charging Time	3–4 Hours
Power Supply	DC12V / 1A

IP Camera Test	Up to 8K / 32MP
ONVIF	Supported
RTSP Playback	Supported
Rapid Video	Auto Video View & Test Report
Hikvision Tool	Batch Activation, IP/Password Modification & Factory Restore
Dahua Tool	Batch Activation & IP Configuration
Client APK Installation	Supported

CVBS Input	1 Channel BNC Input
Video Standard	NTSC / PAL Auto Adaptive
PTZ Control	RS485, 600–115200bps
PTZ Protocols	PELCO-D/P, Samsung, Panasonic and 30+ Protocols
TVI Support	8MP 3840 × 2160P @ 12.5/15FPS
CVI Support	8MP 3840 × 2160P @ 12.5/15FPS
AHD Support	8MP 3840 × 2160P @ 15FPS
SDI Support	Not Supported
UTC Control	Supported
OSD Menu Control	Supported

Standard PoE Output	DC48V, Max 25.5W
12V Camera Power Output	DC12V / 3A

Wire Tracer	Not Supported
UTP Cable Analysis	Connection Status & Near/Mid/Far-End RJ45 Plug Fault Detection

Audio Input	1 Channel
Data Monitor	Hexadecimal Data Capture & Send
Screen Snapshot	Supported
Video Recording	Supported
Digital Zoom	4×
Playback	Supported
Power Monitoring	Real-Time DC12V Input/Output Voltage & Power Display
Screen Mirroring	Android Phone / PC Display Supported

Supported Languages	English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, German, Serbian, Czech, Vietnamese and more

Working Temperature	-10°C to +50°C
Working Humidity	30%–90%

Tester Dimensions	160x100x45mm(6.3x3.94x1.77inch)
Tester Weight	360g(0.79lbs)
