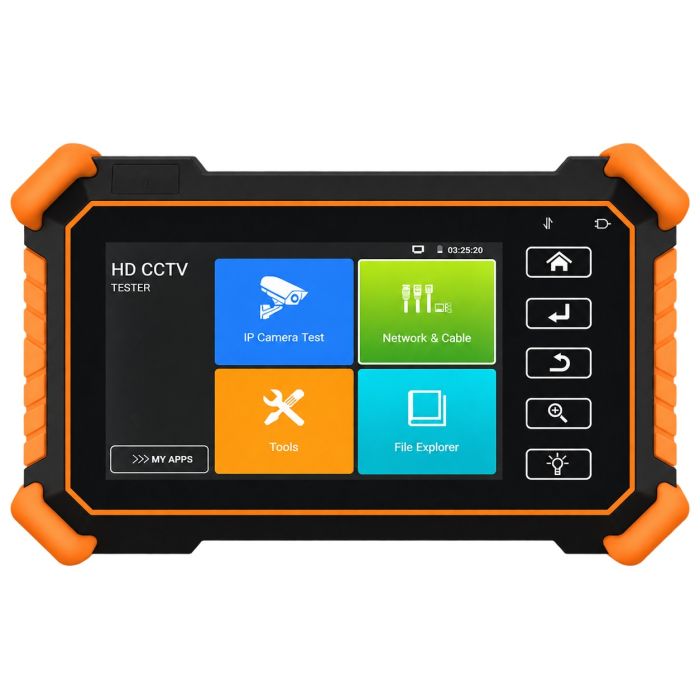

IPC-1900 Plus 4-inch 8K IP Camera Tester

Pocket-size 4-inch 8K IP camera tester with ONVIF, RTSP, Hikvision and Dahua tools, 25.5W PoE, DC12V output, UTP cable test and Wi-Fi.

$209.00
Shipping Calculating...
Free Shipping
Delivering to
Contact us for shipping availability and estimated delivery.
Prefer no fees on delivery? Choose "Duties & Taxes Paid" at checkout.

In stock

Secure checkout 1-year warranty 30-day returns

IPC-1900 Plus

The IPC-1900 Plus is a palm-size tester for IP camera installs: it powers the camera over PoE, finds it on the network and previews the stream up to 8K.

Key Capabilities

  • IP camera testing up to 8K / 32MP with ONVIF, RTSP playback and Rapid Video reports
  • Hikvision and Dahua batch activation and IP / password modification
  • DC48V PoE up to 25.5W and DC12V / 3A output with real-time power display
  • UTP cable test with near / mid / far-end RJ45 plug fault detection
  • Wi-Fi, ping, trace route, DHCP server, port flashing and link monitor

Product Details

Screen Size 4-inch

Technical Specifications

Brand STEEDVISION
Model IPC-1900 Plus
Operating System Android 9.1
Display 4-inch IPS Touchscreen
Resolution 960 × 640
Battery Built-in 7.4V Lithium-ion Battery, 2600mAh, 19.24Wh
Working Time Up to 9 Hours
Charging Time 3–4 Hours
Power Supply DC12V / 1A

IP Camera Testing

IP Camera Test Up to 8K / 32MP
ONVIF Supported
RTSP Playback Supported
Rapid Video Auto Video View & Test Report
Hikvision Tool Batch Activation, IP/Password Modification & Factory Restore
Dahua Tool Batch Activation & IP Configuration
Client APK Installation Supported

Analog & Coaxial HD Testing

CVBS Input Not Supported
TVI Support Not Supported
CVI Support Not Supported
AHD Support Not Supported
SDI Support Not Supported

Power Output

Standard PoE Output DC48V, Max 25.5W
12V Camera Power Output DC12V / 3A

Cable Testing

Wire Tracer Not Supported
UTP Cable Analysis Connection Status & Near/Mid/Far-End RJ45 Plug Fault Detection

Network Functions

Wi-Fi Module Built-in Wi-Fi
Wi-Fi Speed 150Mbps
Ping Utility Supported
Trace Route Supported
DHCP Server Supported
Port Flashing Supported
Link Monitor Supported

Audio & Data Functions

Audio Input 1 Channel
Data Monitor Hexadecimal Data Capture & Send
Screen Snapshot Supported
Video Recording Supported
Digital Zoom 4×
Playback Supported
Power Monitoring Real-Time DC12V Input/Output Voltage & Power Display
Screen Mirroring Android Phone / PC Display Supported

Languages

Supported Languages English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, German, Serbian, Czech, Vietnamese and more

Working Environment

Working Temperature -10°C to +50°C
Working Humidity 30%–90%

Dimensions & Weight

Tester Dimensions 160x100x45mm(6.3x3.94x1.77inch)
Tester Weight 360g(0.79lbs)
