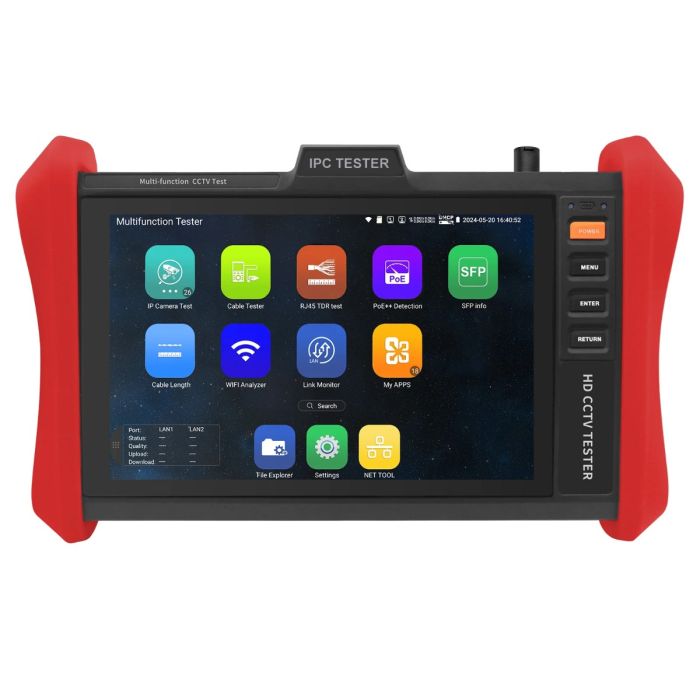

E88 8-inch 4K IP Camera Tester
8" IPS touchscreen CCTV Tester: 4K 12MP IP camera test | Built-in Wi-Fi | PoE++ 90W Power Output | TDR Up to 180m / 590ft | Gigabit SFP Port
- SKU
- E88
Save $12.00 (5%)
Regular Price
$239.99
$227.99
Regular Price
Secure checkout
1-year warranty
30-day returns
Business Purchase
Buying on behalf of a company?
We can help with:
- Proforma Invoice (PI)
- Bank Transfer (T/T)
- Bulk Order Pricing
- Company Invoice
- Dedicated Sales Support
Technical Specifications
| Model | E88 |
|---|---|
| Operating System | Android |
| CPU | 4-Core 1.6GHz |
| Memory | 1GB DDR / 8GB eMMC |
| Display | 8-inch IPS touchscreen with backlit buttons |
| Resolution | 1920 x 1200 |
| Battery | Built-in 11.1V lithium polymer battery, 5200mAh, 57.72Wh |
| Working Time | Up to 11 hours |
| Charging Time | Fast charging about 3.5 hours |
| Power Supply | DC15V / 1.6A |
IP Camera Testing
| IP Camera Test | Up to 4K / 12MP via main stream |
|---|---|
| ONVIF | Supported |
| RTSP Playback | Supported |
| Rapid Video | Auto view video and create testing reportBatch activate cameras, modify IP/password, change channel name, wide dynamic mode, factory restore |
| Hikvision Tool | Batch activate cameras, modify IP/password, change channel name, wide dynamic mode, factory restore |
| Dahua Tool | Batch activate cameras, modify IP, username and password, change channel name |
Analog & Coaxial HD Testing
| PTZ Control | RS485, 600-115200bps |
|---|---|
| PTZ Protocols | PELCO-D/P, Samsung, Panasonic, and 30+ protocols |
Power Output
| Standard PoE Output | DC48V, Max 25.5W |
|---|---|
| PoE++ Output | DC55V, Max 90W |
| 12V Camera Power Output | DC12V / 3A |
| 24V Camera Power Output | DC24V / 2A |
| USB Power Output | DC5V / 2A |
Cable Testing
| UTP Cable Analysis | Connection status and near-end / mid-end / far-end RJ45 plug fault display |
|---|---|
| RJ45 TDR Analysis | Pair status, length, attenuation, reflectivity, impedance, skew |
| RJ45 TDR Range | Up to 180m / 590ft |
Network Functions
| Ethernet Port | Dual Gigabit RJ45 ports |
|---|---|
| Ethernet Speed | 10/100/1000Mbps adaptive |
| SFP Port | 1 x Gigabit SFP optical fiber module interface |
| Wi-Fi Module | Built-in 2.4GHz Wi-Fi |
| Wi-Fi Speed | 150Mbps |
| Ping Utility | Supported |
| Trace Route | Supported |
| DHCP Server | Supported |
| Port Flashing | Supported |
| Link Monitor | Supported |
Audio & Data Functions
| Audio Input | 1 channel audio signal input |
|---|---|
| Audio Monitoring | Monitoring | 1 channel audio signal to headphone |
| Data Monitor | Captures/analyzes command data and can send hexadecimal data |
| Digital Zoom | 4× |
| Playback | Supported |
Languages
| Supported Languages | English, polski, italiano, 한국어, русский, español, 日本語, français, Deutsch, Türkçe, português, tiếng Việt, etc. |
|---|
Working Environment
| Working Temperature | -10 C to +50 C (14 F to 122 F) |
|---|---|
| Working Humidity | 30% to 90% |
Dimensions & Weight
| Package Dimensions | 320 x 290 x 100mm (12.6 x 11.4 x 3.94in) |
|---|---|
| Package Weight | 2040g (4.5lbs) |
| Tester Dimensions | 275 x 170 x 48mm (10.83 x 6.7 x 1.89in) |
| Tester Weight | 1090g (2.4lbs) |
